Eaton 260030

NZM2-XKS

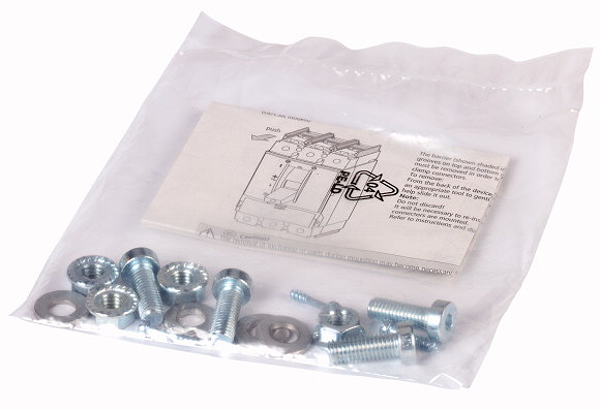

Screw connection 3p, standard, size 2

Description

EL-Nummer (Norway). 0004358804. Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 or 4 pole switches. Standard connection with all NZM2, PN2 and N2 circuit-breakers. Conversion kit for circuit-breaker with box terminal. Use special cable lug narrow version. fitted within the switch housing. If a busbar is used, insulation (400 mm) e.g sleeving and a NZM2(4)-XKSA cover are required. U e ≧ 525 VAC. For all other connection material e.g. cables, flat conductors, a NZM2(-4)-XKSA shroud must be used. Can be used for: NZM2(-4), PN2(-4), N(N/O)2(-4)
