Eaton 222666

T0-3-8297/I1

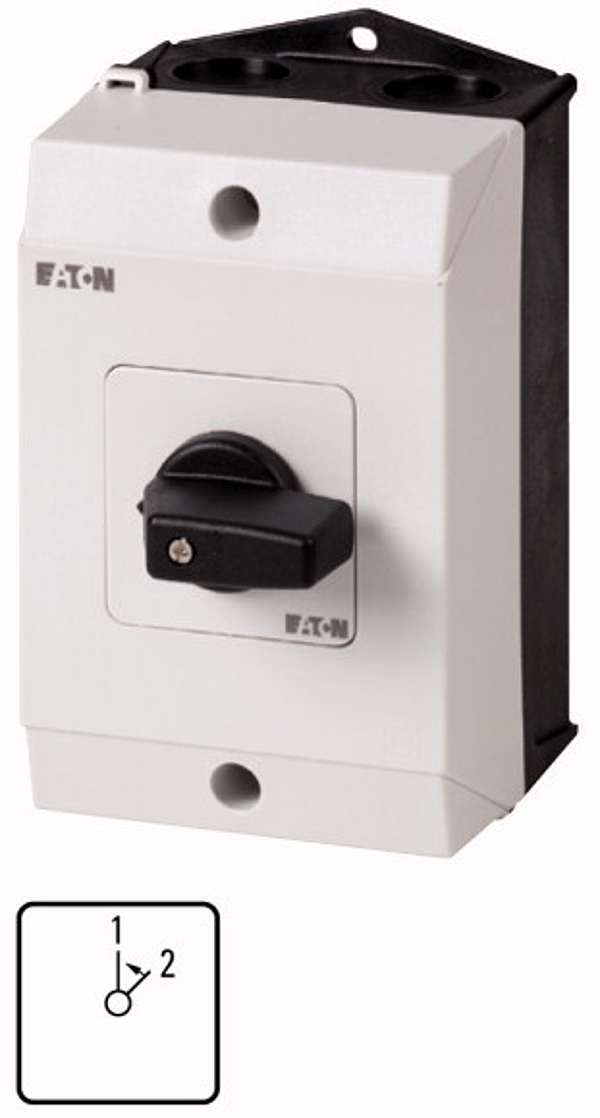

Changeoverswitches, T0, 20 A, surface mounting, 3 contact unit(s), Contacts: 6, 45 °, momentary, Without 0 (Off) position, With spring-return to 1, 1<2, Design number 8297

Description

Changeover switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T0, with black thumb grip and front plate, Contacts: 6, Degree of Protection: IP65, Design: surface mounting, Switching angle: 45 °, Switching performance: momentary, Without 0 (Off) position, With spring-return to 1, 3 contact unit(s), Rated uninterrupted current: Iu= 20 A, front plate: 1<2
