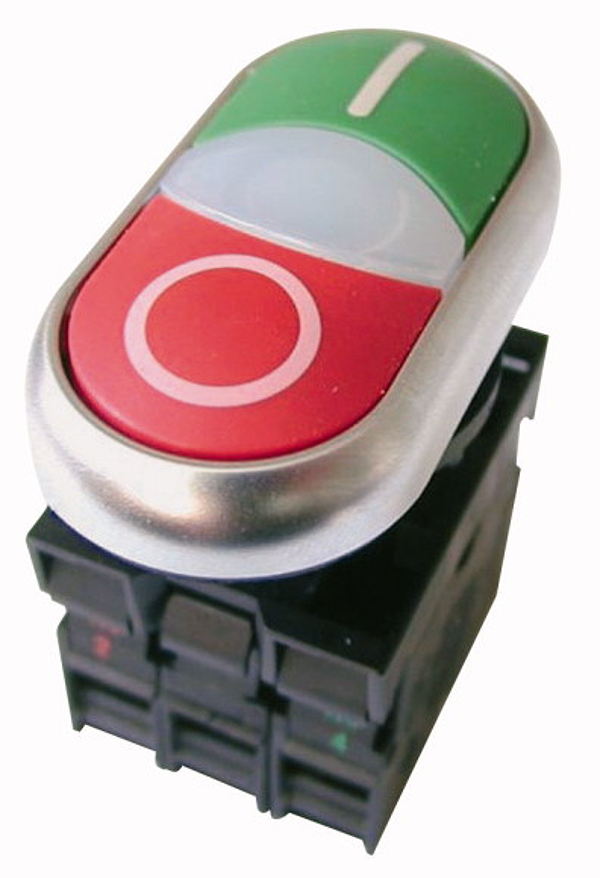

216509
M22-DDL-GR-X1/X0/K11/230-W
Double actuator pushbutton, RMQ-Titan, Actuators and indicator lights non-flush, momentary, 1 NC, 1 N/O, White lens, LED element, 85 - 264 V AC, green, red, inscribed, Bezel: titanium
Alternate Catalog No. M22-DDLGR-X1X0K11QWQ. EL-Nummer (Norway). 4355282. Double actuator pushbutton, RMQ-Titan, Complete unit, Design: Actuators and indicator lights non-flush, momentary, Connection type: Screw connection, Description: White lens, LED element, 85 - 264 V AC, button plate: green, red, Button plate inscribed, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: no, Contacts N/C = Normally closed: 1 NC, N/O = Normally open: 1 N/O, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 4.8, Maximum travel: mm 5.7, Minimum force for positive opening: N 15, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.02 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
