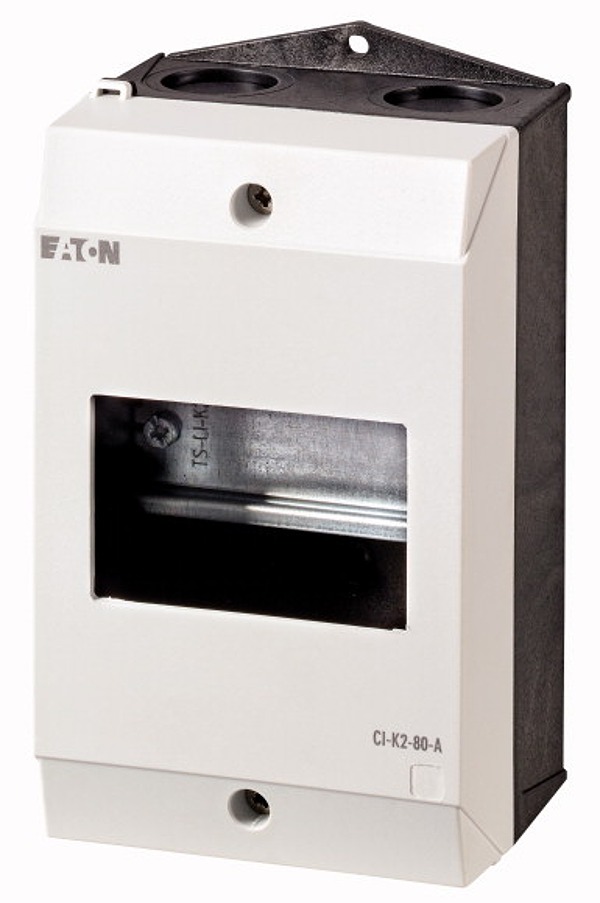

Eaton 211107

CI-K2-80-A

Insulated enclosure, HxWxD=160x100x80mm, +cut-out 45mm

Description

Insulated enclosure, with cover cutout, Product range: CI-K small enclosures, Basic enclosures, Single unit, Degree of Protection: IP30, Material: Glass-fibre reinforced polycarbonate, Colour: Enclosure base RAL 9005, black, Operator only RAL 7035, light gray, Description: Metric cable entry knockouts top, bottom and in the back plate, Push-through cable entry diaphragm, Control cable entry, Lamp indicator L‐… can be mounted in base knock-out M20/M25, Standard cutout dimensions and mounting rail for devices requiring up to 4 space units, Close off of unused space units (max. 2) using VST1 blanking strips, Mounting depth for mounting rail 7.5 mm height: 46 mm, Standards: IEC/EN 60529, DIN EN 62208
