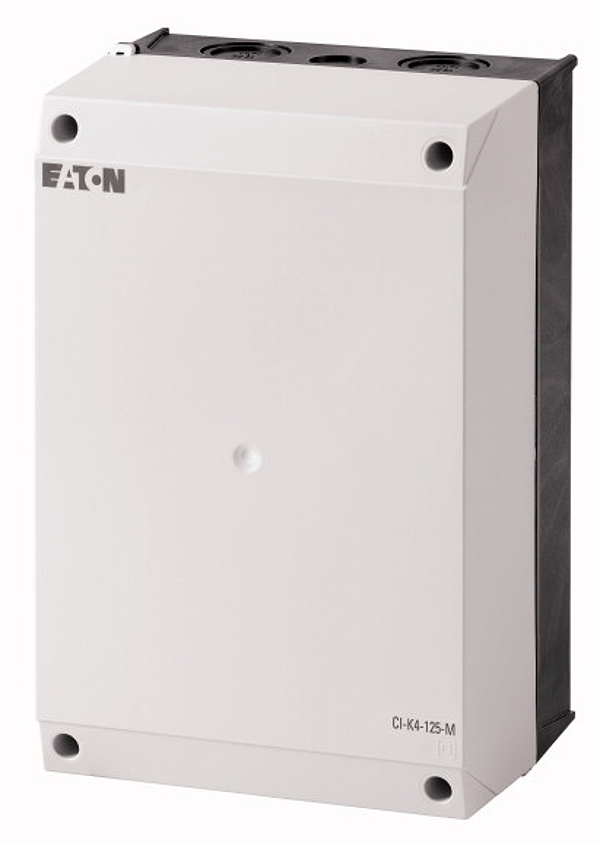

Eaton 206897

CI-K4-125-M

Insulated enclosure, HxWxD=240x160x125mm, +mounting plate

Description

EL-Nummer (Norway). 0004138010. Insulated enclosure, With mounting plate, Product range: CI-K small enclosures, Basic enclosures, Single unit, Degree of Protection: Front IP65, IP65, with push-through cable entry, Material: Glass-fibre reinforced polycarbonate, Colour: Enclosure base RAL 9005, black, Operator only RAL 7035, light gray, Description: Metric cable entry knockouts top, bottom and in the back plate, Control cable entry, Lamp indicator L‐… can be mounted in base knock-out M20/M25, Cable entry: hard knockout version, Dimensions Width: 160 mm, Height: 240 mm, Depth: 125 mm, Mounting depth with mounting plate: 98 mm, Standards: IEC/EN 60529, DIN EN 62208
