Eaton 206882

CI-K2-100-TS

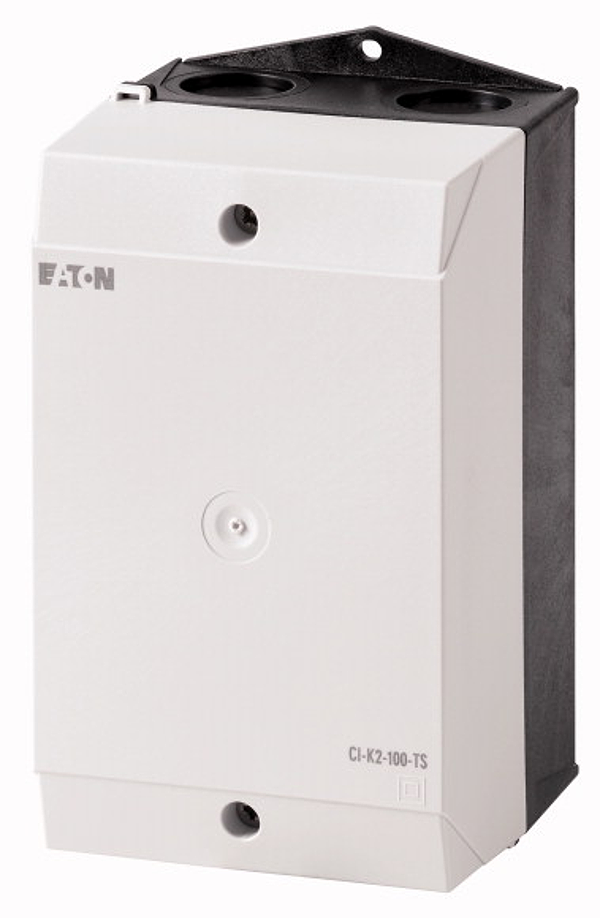

Insulated enclosure, HxWxD=160x100x100mm, +mounting rail

Description

EL-Nummer (Norway). 0004138001. Insulated enclosure, With mounting rail to IEC/EN 60715, Product range: CI-K small enclosures, Basic enclosures, Single unit, Degree of Protection: Front IP65, IP65, with push-through cable entry, Material: Glass-fibre reinforced polycarbonate, Colour: Enclosure base RAL 9005, black, Operator only RAL 7035, light gray, Description: Metric cable entry knockouts top, bottom and in the back plate, Control cable entry, Lamp indicator L‐… can be mounted in base knock-out M20/M25, Cable entry: Push-through cable entry diaphragm, Dimensions Width: 100 mm, Height: 160 mm, Depth: 100 mm, Mounting depth for mounting rail 7.5 mm height: 73 mm, Standards: IEC/EN 60529, DIN EN 62208
