Eaton 191929

KLV-48HWP-F-VM

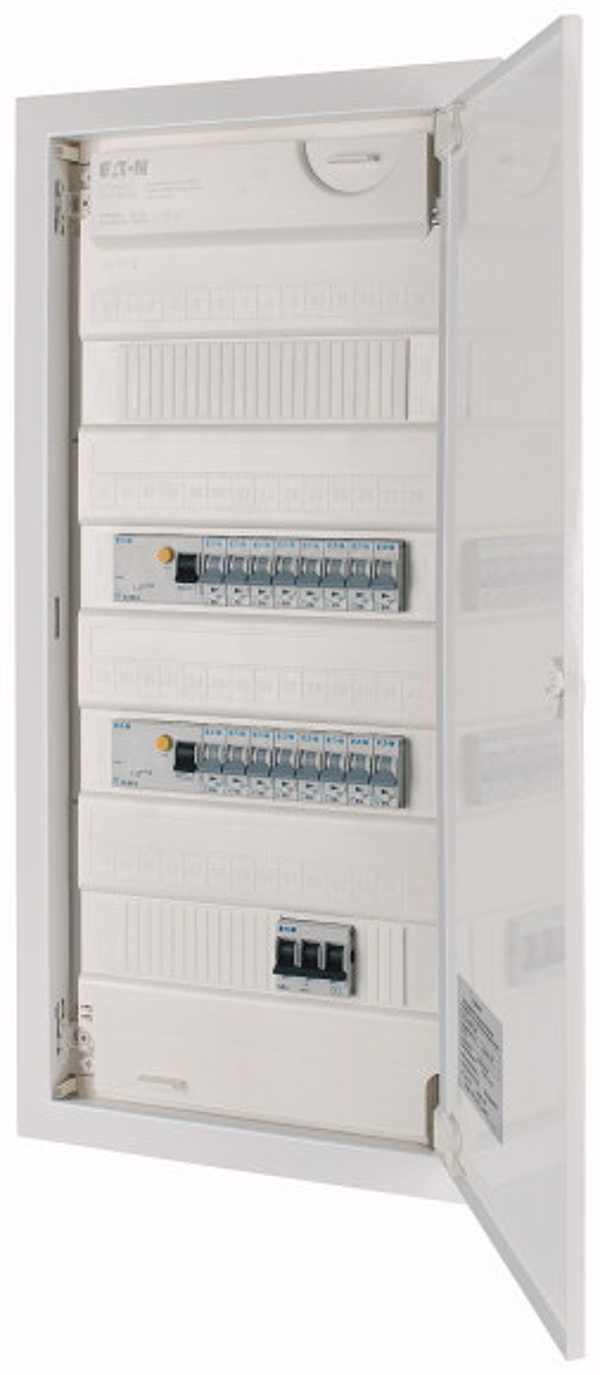

Hollow wall compact distribution board, 4-row, flush sheet steel door, pre-wired

Description

Second generation KLV hollow-wall compact distribution board, protection class II, plastic enclosure with sheet steel door, front cover, sealable and laser-inscribed in accordance with IEC/EN 60670-24, plus 2-space-unit reserve per row, marking slot in wall box, slim door frame design, rugged door cam lock, optionally replaceable with safety interlock, cable retainer for neat wiring, optionally available in form of delivery for projects, optional door with frame with requested RAL color, comprehensive range of accessories, equipment supplied: enclosure, device carrier, front cover, neutral and protective conductor terminals with KSK plug-in terminal technology, spirit level, 3D adjustment element for mounting designed to adjust the mounting depth by up to 18 mm, cable retainer, hollow wall anker, installation instructions, imprintable sheet, special packaging designed to meet real-life application requirements, wired, 5-terminal block + 18 space unit reserve, 2 rows per PXF-40/4/003-A, linked to eight PLI-B16/1 units. Standards: In accordance with IEC/EN 60670-24, DIN 43871
