Eaton 189575

KLV-36UPP-F-2PXF-16PLI

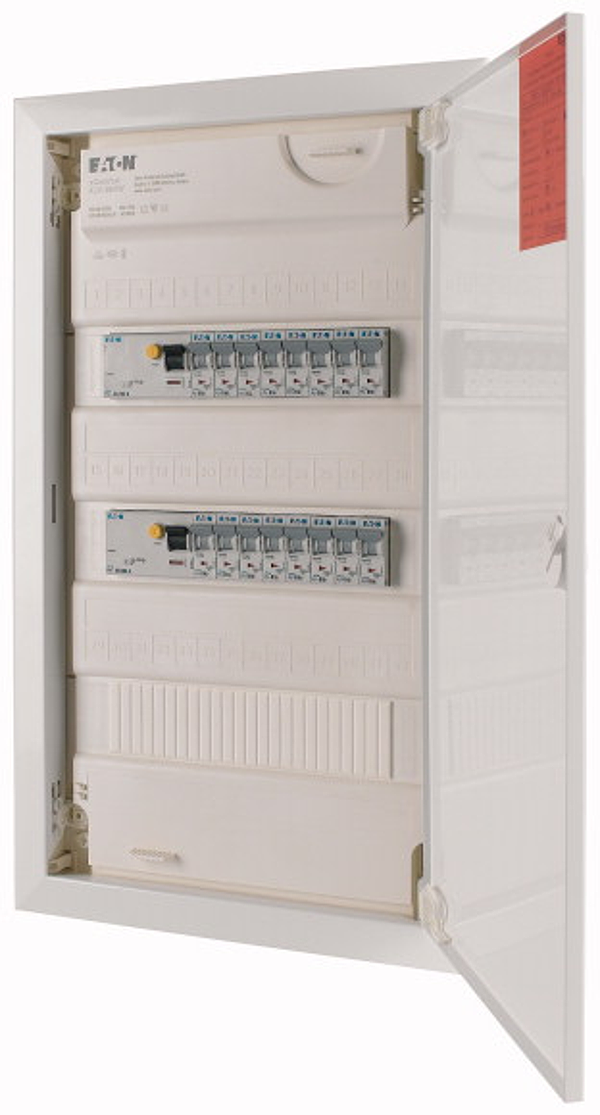

Assembled flush mounting compact distribution board, 3-row, flush sheet steel door

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Equipped pre-wired and tested KLV flush mounting compact distribution board, with 2 PXF residual current circuit-breakers; 16 PLI miniature circuit-breakers; end-to-end push-in terminals for all outgoing circuits; protection class II, sealable front cover; door cam lock optionally replaceable with safety lock; comprehensive range of accessories; spirit level; 3D plaster compensation system for fast and clean installation; standards: combination conforming to IEC/EN 60670-24, housing conforming to DIN 43871, IEC/EN 62208, EN 61439-3

Logistic parameters

ECCN:
Country of Origin: CZ
EAN:
Weight: 13.20 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
