Article image 188146

Eaton 188146

M30I-FWRS3-RS-A1

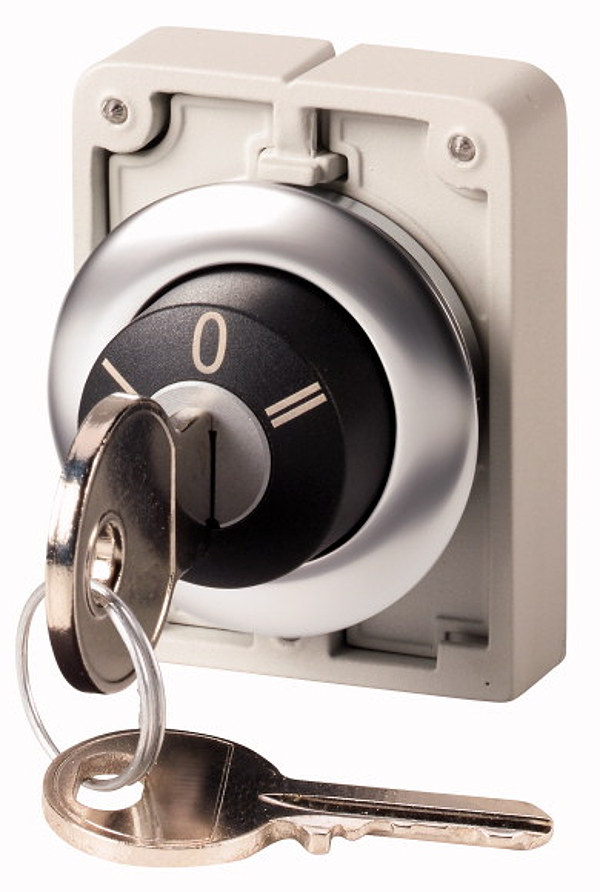

Key-operated actuator, RMQ-Titan, Key operation lock mechanism, maintained, Not suitable for master key systems, 3 positions, Ronis 455, Front ring stainless steel

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Alternate Catalog No. M30I-FWRS3-RS-A1. Key-operated actuator, Product range: RMQ-Titan, Single unit, Design: Key operation lock mechanism, maintained, Not suitable for master key systems, 3 positions, Lock mechanism: Ronis 455, Degree of Protection: IP64, Front ring stainless steel, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: Ø 36mm, Instructions: Stay-put/spring-return function, can be changed with coding parts M22-XC-Y, Key withdraw convertible with coding adapters M22-XC-..., with plunger bridge for the middle contact, with two keys, Standards: IEC/EN 60947, VDE 0660, Degree of Protection: IP64

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 0.06 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
