184789

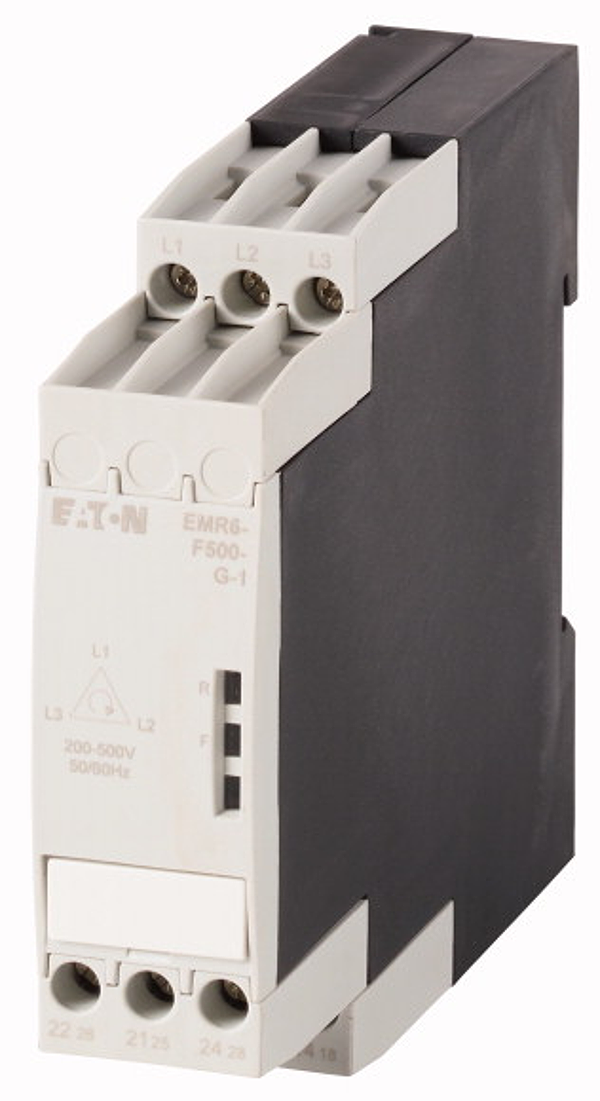

EMR6-F500-G-1
Phase sequence relays, 200 - 500 V AC, 50/60 Hz
Alternate Catalog No. EMR6-F500-G-1. EL-Nummer (Norway). 4101985. Phase sequence relays, Product range: EMR Measuring and monitoring relays, Monitoring of three-phase networks, Phase failure detection at < 0.6 x Ue, Power supply from the measuring circuit, Fixed response delay, Monitoring voltage per phase: UN= 200 - 500 V AC, 50/60 Hz V AC, Monitoring of: Phase failure, Phase sequence, Supply voltage: 200 - 500 V AC, 50/60 Hz, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: IEC/EN 60255-6,
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.16 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
