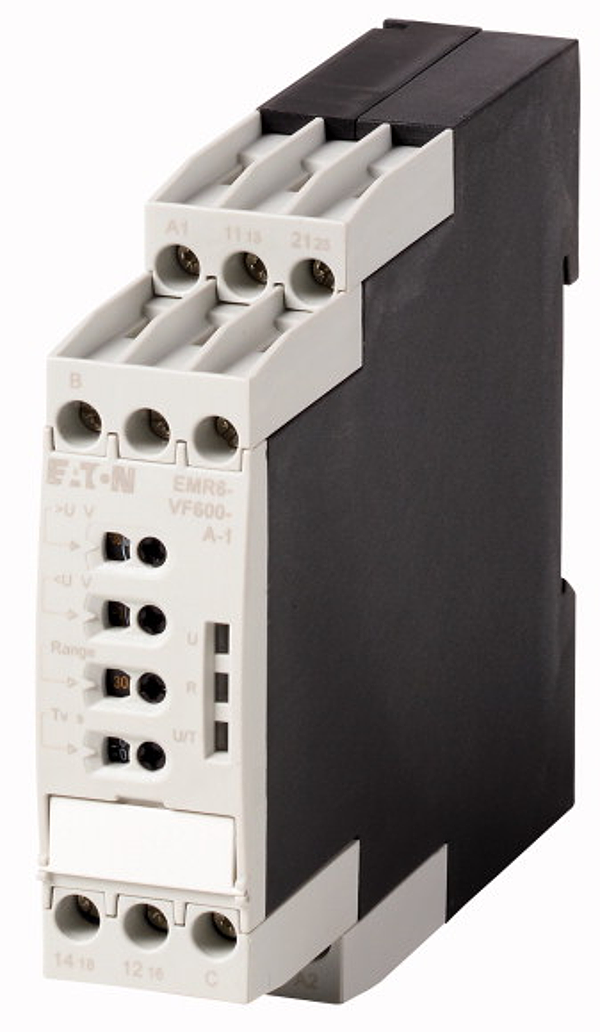

Eaton 184785

EMR6-VF600-A-1

Window-voltage monitoring relay, 3 - 30, 5 - 60, 30 - 300, 60 - 600 V, 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC

Description

Alternate Catalog No. EMR6-VF600-A-1. EL-Nummer (Norway). 4101981. Voltage monitor, Product range: EMR Measuring and monitoring relays, Monitoring of: Overvoltage, Undervoltage, Overvoltage and undervoltage (window), Voltage measurement range: 3 - 30, 5 - 60, 30 - 300, 60 - 600 V, Supply voltage: 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: UL508, CAN/CSA C22.2 No.14, GL, EAC, CCC, RMRS, RCM
