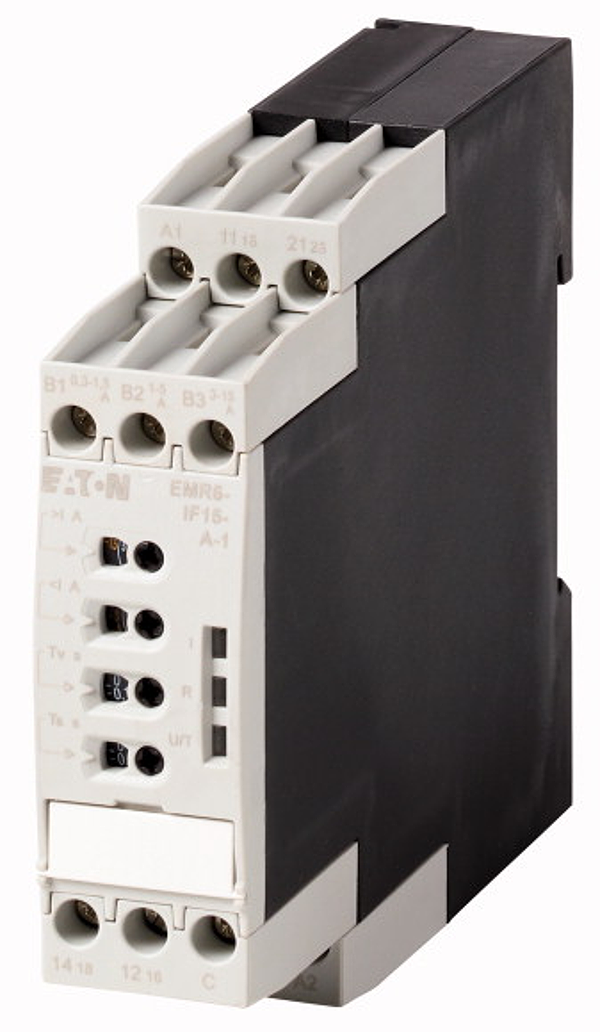

Eaton 184783

EMR6-IF15-A-1

Window-current monitoring relay, I/I= 0.3 - 1.5 A, 1 - 5 A, 3 - 15 A A, 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC

Description

Alternate Catalog No. EMR6-IF15-A-1. EL-Nummer (Norway). 4101979. Current monitoring relays, Product range: EMR Measuring and monitoring relays, Monitoring of single-phase DC and AC networks, Switch-on delay: none = 0 or adjustable from 0.1 to 30 s, Extension of the measurement range possible with current transformers, Monitoring of: Overcurrent, Undercurrent, Overcurrent and undercurrent (window), Current measuring range: I/I= 0.3 - 1.5 A, 1 - 5 A, 3 - 15 A A, Supply voltage: 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: UL 508, CAN/CSA C22.2 No.14, GL, EAC, CCC, RMRS, RCM
