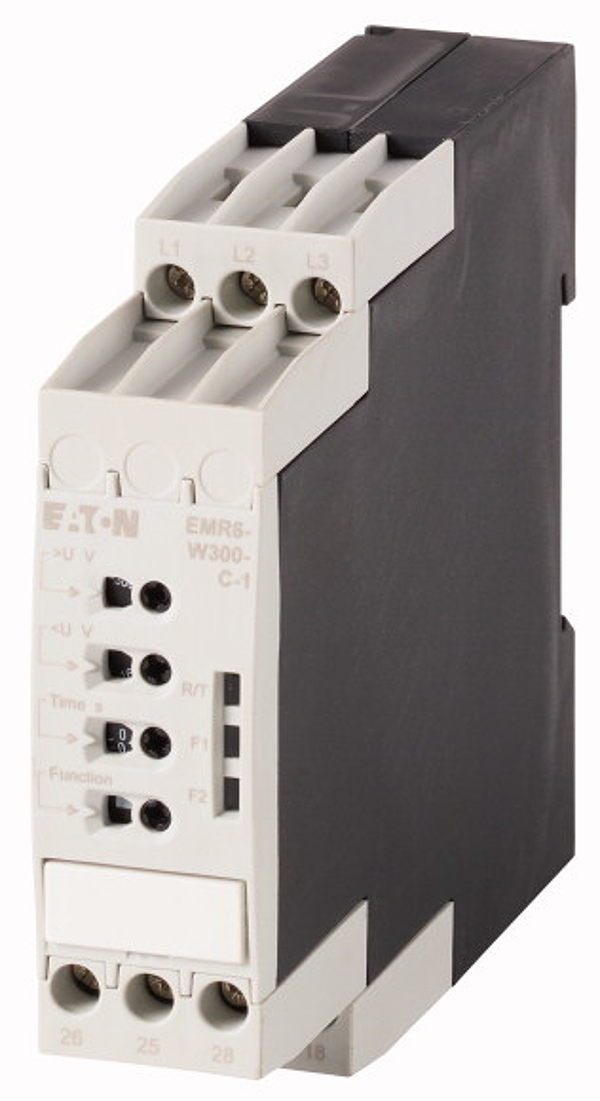

Eaton 184776

EMR6-W300-C-1

Phase monitoring relays, On- and Off-delayed, 160 - 300 V AC, 50/60 Hz

Description

Alternate Catalog No. EMR6-W300-C-1. EL-Nummer (Norway). 4101972. Phase monitoring relays, Product range: EMR Measuring and monitoring relays, On- and Off-delayed, Power supply from the measuring circuit, On-delay/off-delay: none = 0 or adjustable between 0.1 - 30 s, Imbalance threshold values adjustable 2 - 25 % of mean value of phase voltages, Three-phase networks, Monitoring voltage per phase: UN= 160 - 300 V AC, 50/60 Hz V AC, Monitoring of: Phase sequence (can be deactivated), Phase failure, Overvoltage, Undervoltage, Supply voltage: 160 - 300 V AC, 50/60 Hz, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: IEC, UL, CSA, CCC, GL
