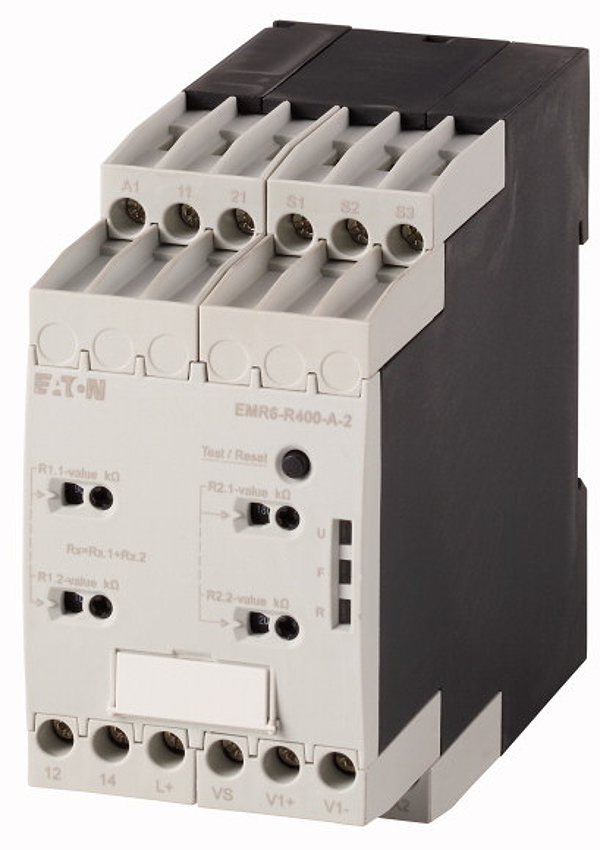

Eaton 184774

EMR6-R400-A-2

Insulation monitoring relays, 0 - 400 V AC, 0 - 600 V DC, 1 - 100 kΩ

Description

Alternate Catalog No. EMR6-R400-A-2. EL-Nummer (Norway). 4101970. Insulation monitoring relays, Product range: EMR Measuring and monitoring relays, Status indication via LEDs, Open-circuit principle, Test or reset with button on device or with control input, Configurable fault memory/memory function, Configurable non-volatile fault memory, Wire break detection, Monitoring of: Insulation resistance in non-earthed AC supply systems (three-phase, four-phase systems), insulation resistance in non-earthed DC supply systems (three-phase systems), adjustable sensitivity range: 1 - 100 kΩ, 2 - 200 kΩ, Supply voltage: 24 - 240 V AC, 50/60 Hz, 24 - 240 V DC, Rated operating voltage for the supply system being monitored: 0 - 400 V AC, 0 - 600 V DC, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: IEC/EN 60255-6,
