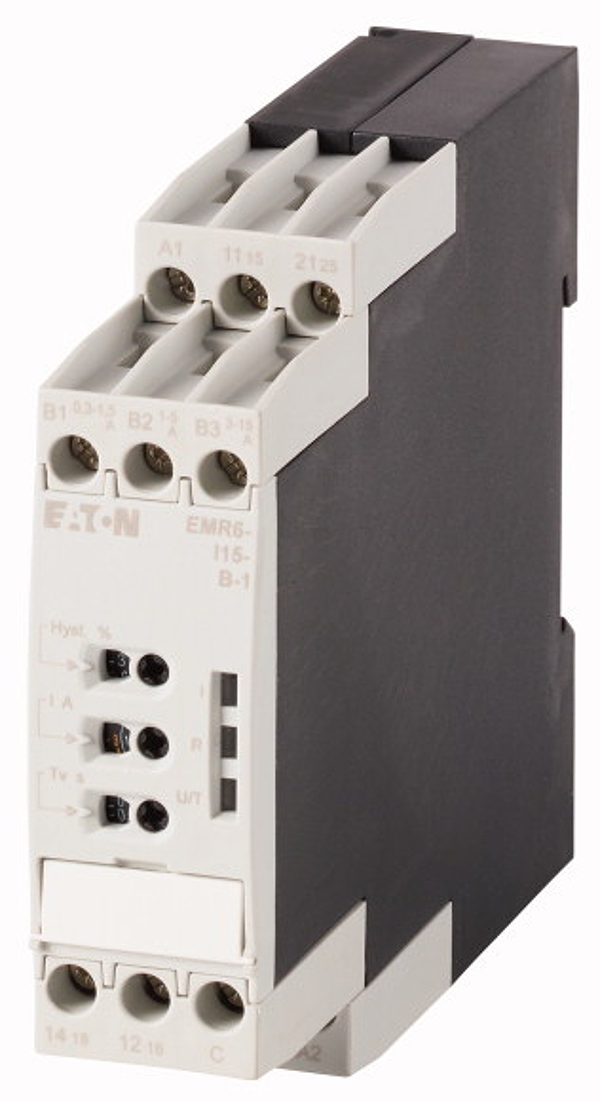

Article image 184755

Eaton 184755

EMR6-I15-B-1

Overcurrent monitor, I/I= 0.3 - 1.5 A, 1 - 5 A, 3 - 15 A A, 220 - 240 V AC, 50/60 Hz

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Alternate Catalog No. EMR6-I15-B-1. EL-Nummer (Norway). 4101951. Current monitoring relays, Product range: EMR Measuring and monitoring relays, Monitoring of single-phase DC and AC networks, On delay: None = 0 or adjustable from 0.1 to 30 s, Extension of the measurement range possible with current transformers, Monitoring of: Overcurrent, Undercurrent, Current measuring range: I/I= 0.3 - 1.5 A, 1 - 5 A, 3 - 15 A A, Supply voltage: 220 - 240 V AC, 50/60 Hz, Mounting position: As required, Fixing: Snap fixing, top-hat rail IEC/EN 60715, Width: 22.5 mm, Standards: UL 508, CAN/CSA C22.2 No.14, GL, EAC, CCC, RMRS

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 0.18 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
