Product
Eaton
184462
XNH2-CI45E
Request a Quote
Image copyright: Eaton
Eaton 184462
XNH2-CI45E

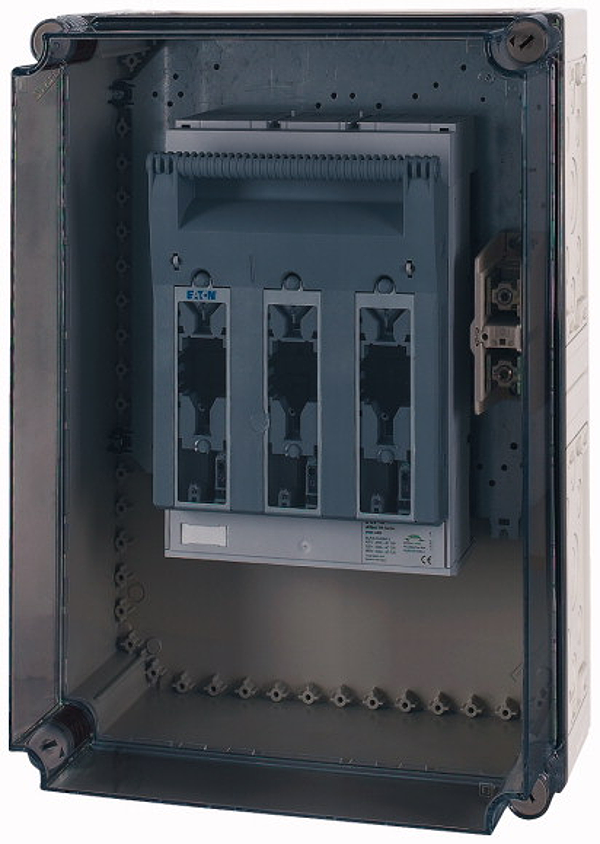

Ci45 individual enclosure;including one NH2 disconnector
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Single housing with 1x NH fuse load disconnector, material polycarbonate, impact-resistant, protection type IP65, metric knockouts in all side plates, fuse base on mounting plate made of 3mm sheet steel, fastening lugs for wall mounting, sealable lid fasteners, transparent smoky gray cap, clamp for connecting 4th conductor (PE/N), rated operating current Ie=390 A, fuse insert NH2, retrofit clamp for 5th conductor=K240/1, please order fuse inserts separately.
Logistic parameters
| ECCN: | |
| Country of Origin: | PL |
| EAN: | |
| Weight: | 10.24 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
