Article image 183606

Eaton 183606

IZMX40H3-P16W-1

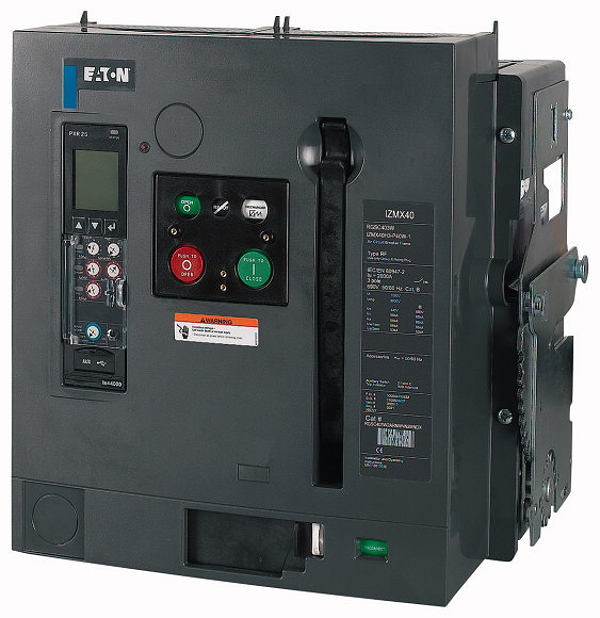

Circuit-breaker, 3 pole, 1600A, 105 kA, P measurement, IEC, Withdrawable

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

EL-Nummer (Norway). 0004398160. Circuit-breaker IZMX40 ( Air circuit-breakers/switch-disconnectors), 3 pole, Current Range: Up to 4000 A, Rated current = rated uninterrupted current( In = Iu): 1600 A, up to 440 V 50/60 Hz( Icu): 105 kA, up to 440 V 50/60 Hz( Ics): 105 kA, Overload release, min.( Ir): 640 A, Overload release, max.( Ir): 1600 A, Installation type: Withdrawable, Standard/Approval: IEC, Protective function: P measurement

Logistic parameters

ECCN:
Country of Origin: US
EAN:
Weight: 69.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
