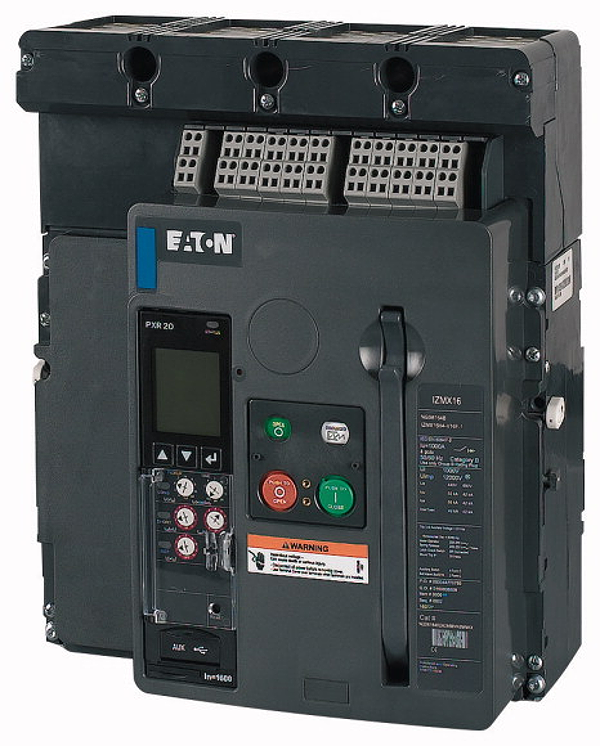

Article image 183401

Eaton 183401

IZMX16B4-P12F-1

Circuit-breaker, 4 pole, 1250A, 42 kA, P measurement, IEC, Fixed

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

EL-Nummer (Norway). 4398045. Circuit-breaker IZMX16 ( Air circuit-breakers/switch-disconnectors), 4 pole, Current Range: Up to 4000 A, Rated current = rated uninterrupted current( In = Iu): 1250 A, up to 440 V 50/60 Hz( Icu): 42 kA, up to 440 V 50/60 Hz( Ics): 42 kA, Overload release, min.( Ir): 500 A, Overload release, max.( Ir): 1250 A, Installation type: Fixed, Standard/Approval: IEC, Protective function: P measurement

Logistic parameters

ECCN:
Country of Origin: CN
EAN:
Weight: 23.37 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
