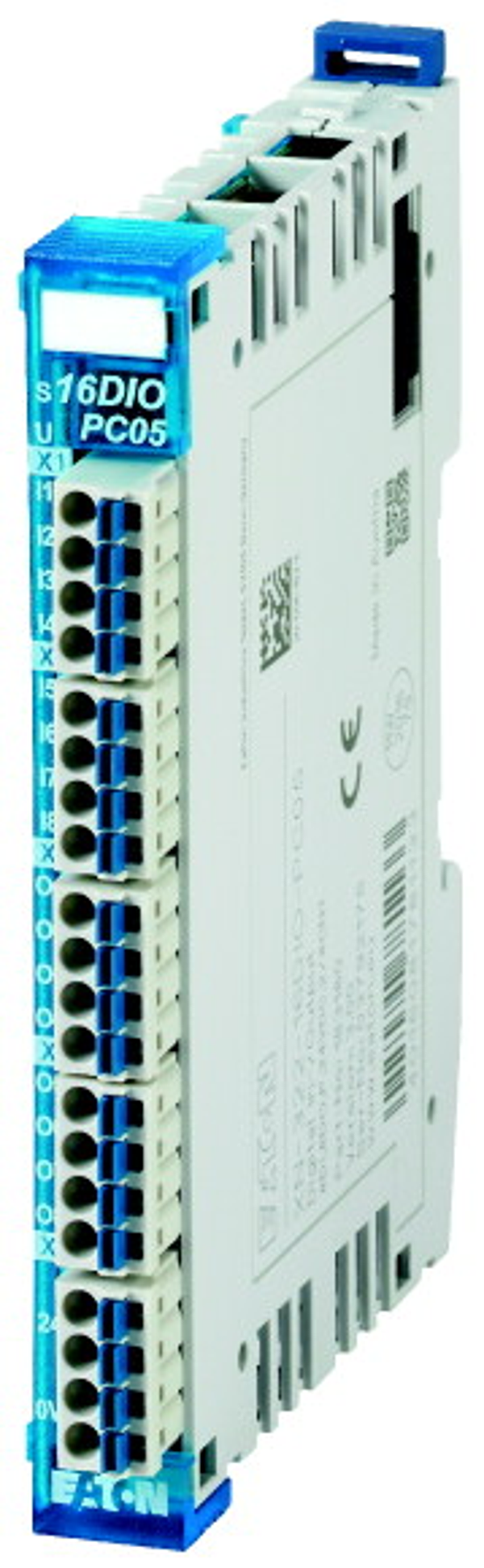

Image copyright: Eaton
Eaton 183180
XN-322-16DIO-PC05
Digital I/O module, 8 digital inputs and 8 digital outputs 24 V DC each, pulse-switching, Meter
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. XN-322-16DIO-PC05. Digital I/O module with four 24 VDC / 3.7 mA (EN 61131-2 type 1) inputs with a 0.5 ms input filter. Additional four 24 VDC / 3.7 mA (EN61131-2 type 1) inputs with a 0.001 ms input filter can be used as four 8-bit or two 16-bit counters with an input frequency of up to 25 kHz. Digital I/O module with eight 24 V DC / 0.5 A short-circuit proof outputs, featuring undervoltage diagnostics for the power supply rails.
Logistic parameters
| ECCN: | |
| Country of Origin: | AT |
| EAN: | |
| Weight: | 0.06 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
