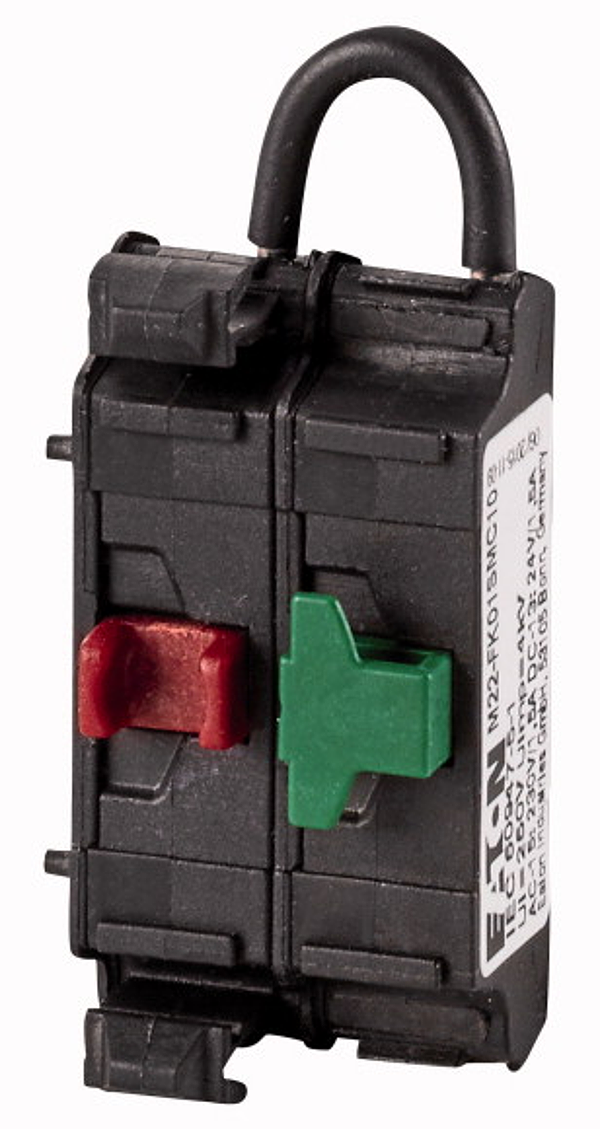

Eaton 180793

M22-FK01SMC10

Contact element FlatRear, 1 N/C, 1 N/A, front mount, spring clamp connection

Description

Alternate Catalog No. M22-FK01SMC10. EL-Nummer (Norway). 4315744. Contact element, Connection technique: Cage Clamp, Fixing: Front fixing, Description: The N/O is actuated when mounted on the pushbutton., Cage Clamp is a registered trademark of Wago Kontakttechnik GmbH/Minden, Germany, Contacts N/C = Normally closed: 1 NC, Contacts Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Actuator travel and actuation force as per DIN EN 60947-5-1, K.5.4.1: mm 5.5, Maximum travel: mm 5.8, Minimum force for positive opening: N 20, Degree of Protection: IP20, Connection to SmartWire-DT: no, Standards: IEC 60947-5-1
