179645
NZM4-XHB-DA-OAG-VW

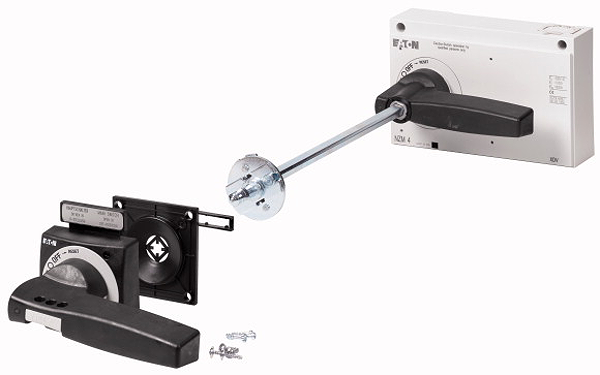

Main switch assembly kit without lockability on the door coupling rotary handle
Alternate Catalog No. NZM4-XHB-DA-OAG. Türkupplungsdrehgriff mit Drehantrieb sowie Zusatzdrehgriff am Schalter mit Bedienungsweise Bewusste Handlung/Deliberate Action. Verlängerungsachse NZM3/4-XV6 für Einbautiefe 600mm. Mit schwarzem Türkupplungsdrehgriff und Türverriegelung. Abschließbar am Schalter mit bis zu 3 Vorhängeschlössern in 0-Stellung. Außenwarnschild/Bezeichnungsschild in Deutsch/Englisch. Alternativ Schilder in anderen Sprachen oder individuellem Text einclipsbar. Schwarz-gelber Blitzpfeil. Verwendbar für: NZM4(-4), N4(-4), N(S)4(-4). Für erhöhten Berührungsschutz auf der Einspeiseseite IP2X Fingerschutz bestellen. Door coupling rotary handle with rotary mechanism and add-on rotary handle on switch with "deliberate action" operation. NZM3/4-XV6 shaft extension for mounting depth of 600 mm. With black door coupling rotary handle and door interlock. Lockable in the 0 position on the switch with up to 3 padlocks. External warning plate/marking plate in German/English. Alternatively, clip-in plates in other languages or with custom text. Black and yellow lightning symbol. Can be used for: NZM4(-4), N4(-4), N(S)4(-4). For enhanced busbar tag shroud on the incomer side, please order IP2X protection against contact with a finger.
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 3.10 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
