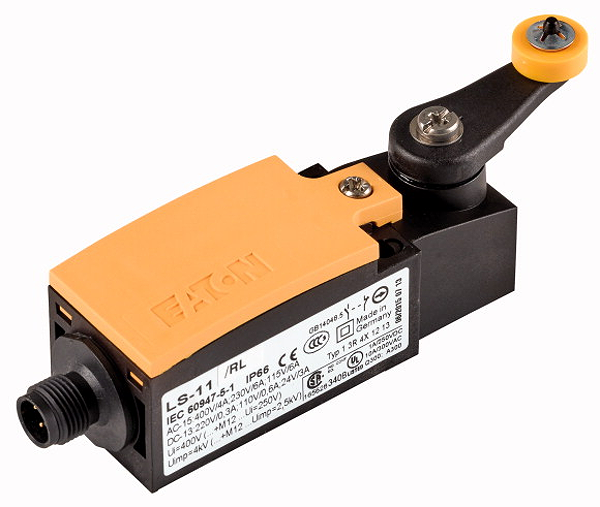

Eaton 178142

LS-11S/RL-M12A

Position switch, Rotary lever, Complete device, 1 N/O, 1 NC, Snap-action contact - Yes, Cage Clamp, Yellow, Insulated material, -25 - +70 °C, with M12 connector, EN 50047 Form A

Description

Alternate Catalog No. LS-11S/RL-M12A. IEC EN 60947-5-1, high degree of protection IP66, world-market device, modular system, Also for use in safety circuits, by positive operation and positive opening contacts. Easy mounting technology, Operating heads can be attached in any 4 directions and snapped-on simple, quick and safely using the bayonet fitting. They are equipped with Cage Clamp or screw terminals and are available with metal or insulated enclosures., suitable for use with electronic devices to IEC/EN 61131-2, M12A connection
