Article image 174694

Eaton 174694

EWP-08142

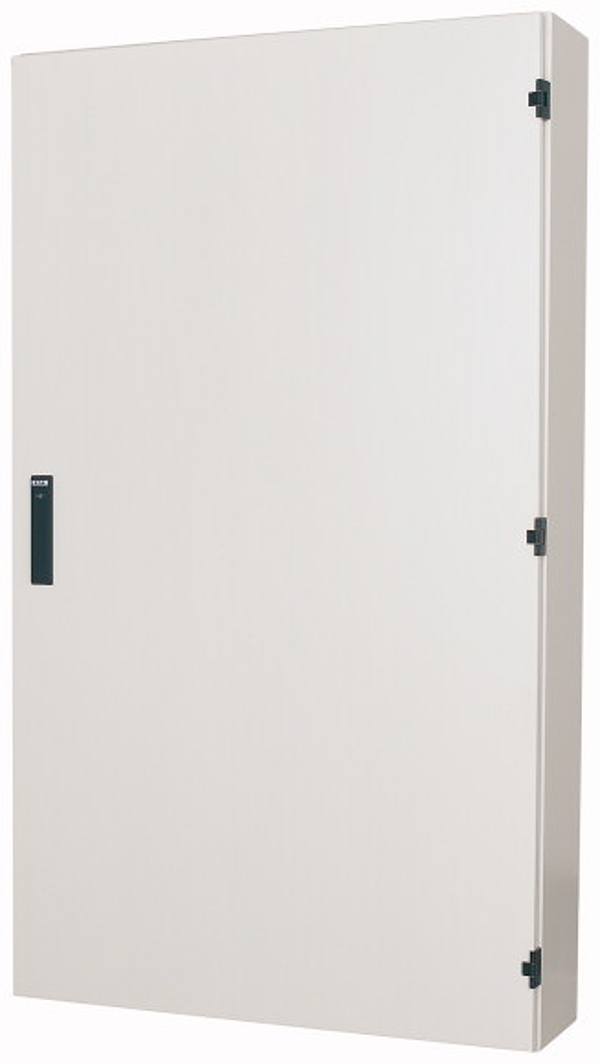

EWP wall-mount enclosure for EP standard mounting units, IP54, protection class 2, RAL9016, without EP modules, HxWxB=1400x800x225mm

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Alternate Catalog No. EWP-08142. EL-Nummer (Norway). 2455882. EWP wall-mounting enclosure for EP standard components with a max. rated operational current of 250 A, for mounting on the wall with the enclosed wall mounting brackets, IP54 degree of protection and IK09 impact resistance as per standard IEC/EN 62208, protection class 2, isolation protection, very sturdy, door 1 wing, 3-point locking system, 6 cable entry plate inserts included, color white RAL9016, without EP modules

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 46.91 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
