174660
EWK-05081

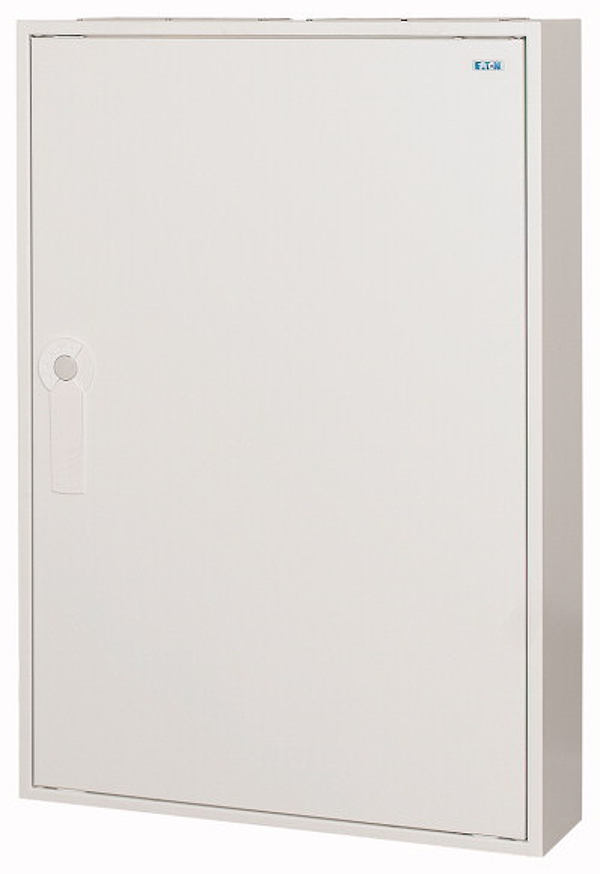

EWK wall-mount enclosure with standard mounting units, 120 SU, IP43, IK09, protection class 2, RAL9016, HxWxB=800x550x160mm
Alternate Catalog No. EWK-05081. EL-Nummer (Norway). 2455848. EWK wall-mount enclosure including standard mounting units, 120 SU for modular DIN devices, plastic protective shroud, galvanized high-grade steel mounting rails, compact enclosure dimensions, since the depth is only 160 mm, rated operational current max. 160A, for direct mounting on the wall, IP43 degree of protection and IK09 impact resistance as per standard IEC/EN 62208, protection class 2, isolation protection, adjustable hinges for easily changing the door handing, very sturdy, door 1 wing, 1 clip-in, 4 cable entry plate inserts included, including N-terminal: 2x (6x1,5-16mm² + 21x0,75-4mm²), including PE-terminal: 2x (6x1,5-16mm² + 21x0,75-4mm²), color white RAL9016
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 14.35 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
