166807
E59-A18C115C02-CV

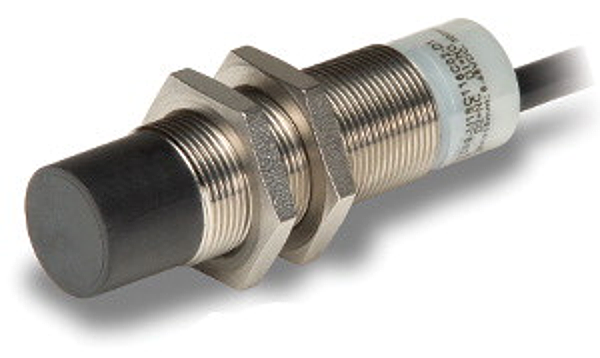

Proximity Sensor, M18, analog, Sn=1-15mm, 15-30VDC, 0-20mA, 0-10V, line 2m
Alternate Catalog No. E59-A18C115C02-CV. Proximity Sensor, Inductive Sensors, Product range: E59 AccuProx Series, Description: Current output (0 - 20 mA) and voltage output (0 - 10 V), Connection: 3-wire/4-wire, Design (outer dimensions): M18 x 1 mm, Rated operational voltage: Ue= 15 - 30 V DC, Rated switching distance: Sn= 1 - 15 mm, Type of mounting: Non-flush, Switching type: Analog, 2 m connection cable, Material: Stainless steel, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2
ECCN: | |
Country of Origin: | MX |
EAN: | |
Weight: | 0.45 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
