Eaton 164333

CHAZ-01/12

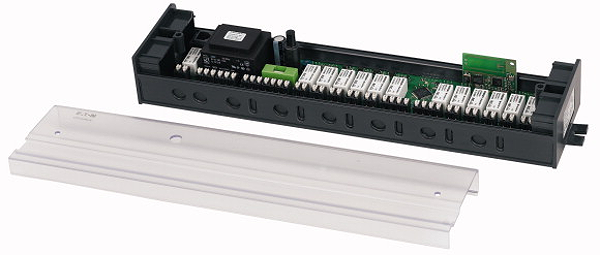

Heating actuator, 12-way

Description

Alternate Catalog No. CHAZ-01-12. EL-Nummer (Norway). 0004560707. The heating actuator can actuate 230V thermal electronic actuators for up to 12 different heating / cooling zones. It can be installed direct in the heat distribution box and requires a 230V mains supply. It is primarily used for the actuation of panel heating / cooling systems (e.g., floor heaters) but is not only limited to that. It obtains nominal and actual values of the room controller, room manager or home manager. the heating factor has an integrated pump control / heating demand where the heating pump / heat generator can be connected locally as well as using a remote switching device. Using the advantage of an external switching to a change-over signal, this control system is suitable for heating and cooling in a single circuit system. A dew-point sensor can interrupt the cooling function in event of thawing occurring. The device is suitable for NC or NO systems.
