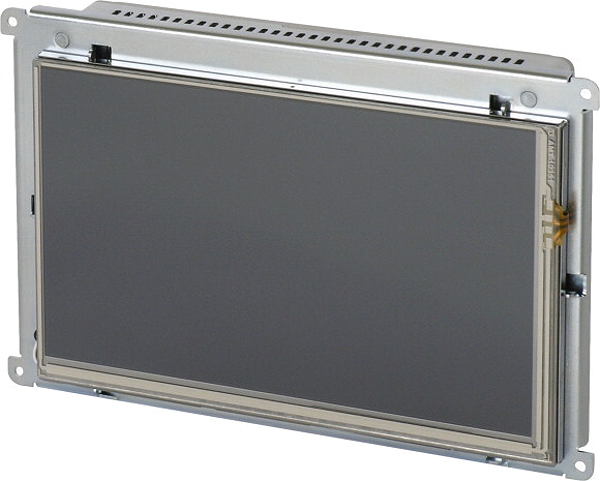

Article image 153470

Eaton 153470

XV-112-DB-70TWRC-00

Touch panel, 24 V DC, 7z, TFTcolor, ethernet, RS232, 2xCAN, PLC, rear mounting

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Alternate Catalog No. XV-112-DB-70TWRC-00. EL-Nummer (Norway). 4560846. User interface, XV-112, Product range: XV100 7", Subrange: SmartWire-DT touch display with integrated controller (HMI PLC), Function: HMIC-PLC (PLC integrated), Description: XV100 touch display with PLC function for flush mounting plates, Coordinator for the SmartWire-DT communications system, Common features of the model series: Ethernet interface, USB device, USB Host, Slot for SD card, UL508, cUL approvals, Display - Type: Color display, TFT, Touch-technology: Resistive-Touch, Number of colours: 64 k Colours, Resolution: WVGA, 800 x 480 Pixel, Portrait format: yes, Screen diagonal: 7 Inch, Metal enclosure, Operating system: Windows CE 5.0 (licence incl.), PLC-licence: PLC licence inclusive, License certificates for onboard interfaces: Not required, built-in interfaces: 1 x Ethernet 10/100 Mbps, 1 x RS232, 2 x CANopen®/easyNet (electrically isolated), 1 x USB host 2.0, 1 x USB device, Front type: without front plate, Utilization: Rear mounting, Slots: for SD card: 1, Memory card automation: Optionally with SD card -> article no. 139807, Pluggable communication cards (optional): no, Touch sensor: Glass with film, Heat dissipation: 11 W, Degree of protection (IEC/EN 60529, EN50178, VBG 4): IP65 (at front), IP20 (at rear)

Logistic parameters

ECCN:
Country of Origin:
EAN: 7640130097308
Weight: 0.00 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
