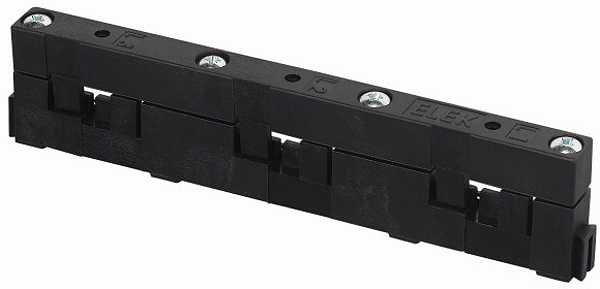

Eaton 148583
SL63032
Busbar support, 3p, 20x5-30x10, (60mm)
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. SL63032. Busbar support for distribution system EP, 60 mm system, rated operational current Ie=630A, poles=3, can be used for 20x5/10 to 30x5/10, with removable contact element for adapting to the busbar size, thermoplastic, silicon free, chlorine free, halogen free, distance between busbar supports corresponding to the distribution board's short-circuit strength diagram, expandable to 4 and 5 poles by inserting the 1-pole SLPEN clamp above and below
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.08 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
