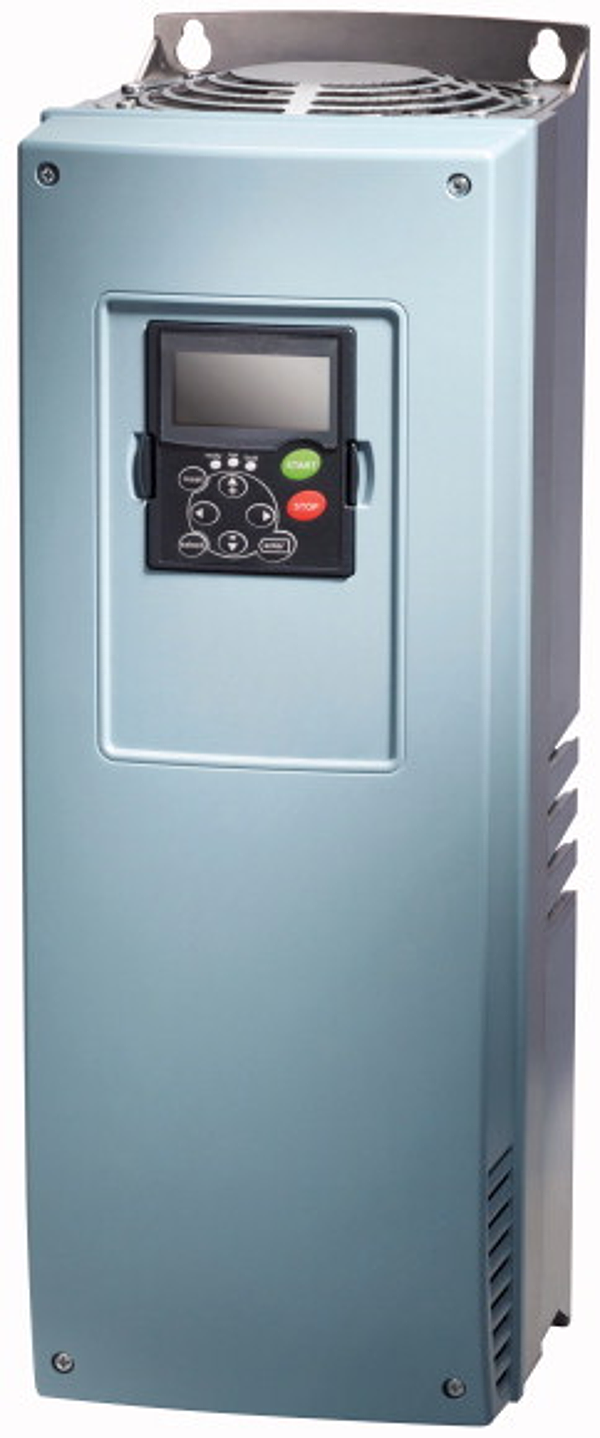

Article image 138498

Eaton 138498

SVX002A2-5A4B1

Variable frequency drive, 600 V AC, 3-phase, 3.2 A, IP54, Radio interference suppression filter, Brake chopper, OLED display, FR6

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Alternate Catalog No. SVX002A2-5A4B1. Variable frequency drive, Part group reference (e.g. DIL): SVX, Rated operational voltage: Ue = 600 V AC, 3-phase, 690 V AC, 3-phase, Output voltage with Ve: U2 = 600 V AC, 3-phase, 690 V AC, 3-phase, Mains voltage (50/60Hz): ULN = 525 (-15%) - 690 (±10%) V, Rated operational current At 150% overload: Ie = 3.2 A, Rated operational current At 110% overload: Ie = 4.5 A, Note: Overload cycle for 60 s every 600 s, Assigned motor rating Note: For AC motors with internal and external ventilation with 50 Hz / 60 Hz, Overload cycle for 60 s every 600 s, at 690 V, 50 Hz, Assigned motor rating 150 % Overload: P = 2.2 kW, 110 % Overload: P = 3 kW, 150 % Overload: IM = 2.9 A, 110 % Overload: IM = 3.8 A, Assigned motor rating Note: at 690 V, 60 Hz, Assigned motor rating 150 % Overload: P = 2 HP, 110 % Overload: P = 3 HP, Assigned motor rating 150 % Overload: IM = 2.3 A, 110 % Overload: IM = 3.4 A, Degree of Protection: IP54, Fieldbus connection (optional): PROFIBUS-DP, LonWorks, CANopen®, DeviceNet, Modbus-TCP, BACnet/IP, Fitted with: Radio interference suppression filter, Brake chopper, OLED display, DC link choke, Frame size: FR6, Standards: Specification for general requirements: IEC/EN 61800-2, EMC requirements: IEC/EN 61800-3, Safety requirements: IEC/EN 61800-5-1

Logistic parameters

ECCN:
Country of Origin: FI
EAN:
Weight: 18.60 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
