Product
Eaton
138370
BBS-3/FL-C
Request a Quote
Image copyright: Eaton

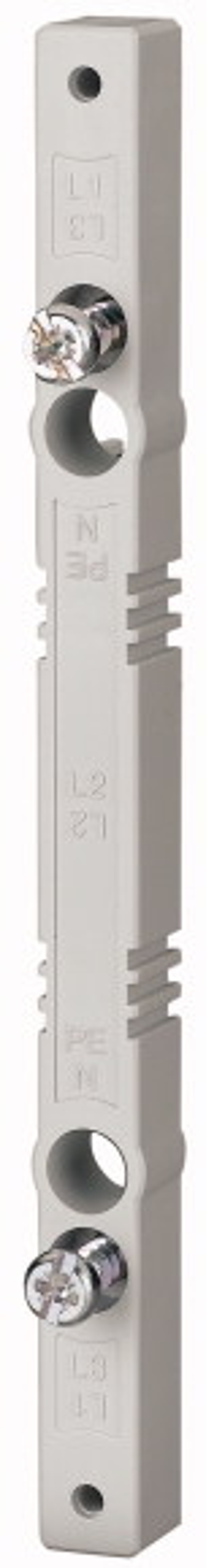

Eaton 138370
BBS-3/FL-C
Busbar support 3p, for flat busbars
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Compact busbar support, 60 mm system, rated operational current Ie=360A, poles=3, can be used for 12x5/10, with removable contact element for adapting to the busbar size, with screw block inside and integrated end shroud, temperature resistant to 120 °C, track resistance CTI 200, self-extinguishing to UL 94, RAL 7035, thermoplastic, silicon free, chlorine free, halogen free, distance between busbar supports corresponding to short-circuit strength diagram
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.68 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
