Article image 136205

Eaton 136205

E59-M12A105C02-D1

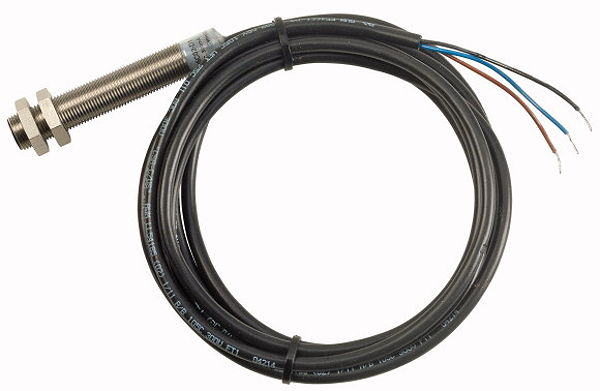

Proximity switch, inductive, 1N/O, Sn=4mm, 4L, 6-48VDC, NPN, PNP, M12, metal

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Alternate Catalog No. E59-M12A105C02-D1. Proximity switch, Inductive Sensors, Product range: iProx Series, Connection: 3-wire, Design (outer dimensions): M12 x 1 mm, Rated operational voltage: Ue= 6 - 48 V DC, Rated switching distance: Sn= 4 mm, Type of mounting: Flush, Switching type: NPN, PNP, 2 m connection cable, Contacts N/O = Normally open: 1 N/O, Material: Stainless steel, Degree of Protection: IP67, IP69K, Standards: IEC/EN 60947-5-2

Logistic parameters

ECCN:
Country of Origin: MX
EAN:
Weight: 0.45 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
