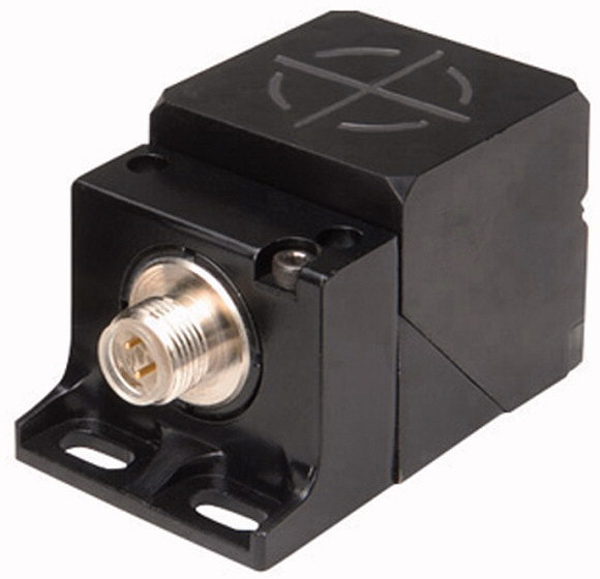

Eaton 135811

E52Q-DL40UAD01

Proximity switch, inductive, 1N/O+1N/C, Sn=40mm, 4L, 10-48VDC, NPN, PNP, quad.40, insulated material

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Alternate Catalog No. E52Q-DL40UAD01. EL-Nummer (Norway). 0004315364. Proximity switch, Inductive Sensors, Product range: E52 Cube Series, Description: Housing adapter, Connection: 4-wire, Design (outer dimensions): 40 x 40 x 40 mm, Rated operational voltage: Ue= 10 – 48 V DC, Rated switching distance: Sn= 40 mm, Type of mounting: Non-flush, Switching type: NPN, PNP, Plug-in connection M12 x 1, Contacts N/C = Normally closed: 1 NC, Contacts N/O = Normally open: 1 N/O, Material: Zinc/Insulated material, Degree of Protection: IP67, Standards: IEC/EN 60947-5-2

Logistic parameters

ECCN:
Country of Origin: MX
EAN:
Weight: 0.27 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
