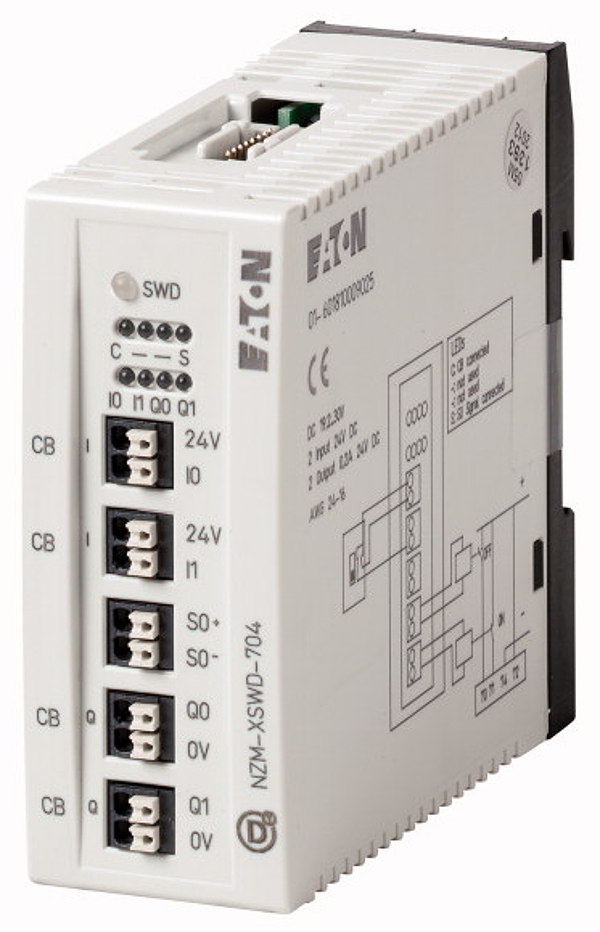

Eaton 135530

NZM-XSWD-704

Connection, SmartWireDarwin, for NZM

Description

EL-Nummer (Norway). 0004520017. Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: the module implements the data connection between the NZM2/3/4 with electronic release and the SmartWire-DT. The switch can also be switched remote using a motor drive. Retentive memory for energy data (kWh). energy data is transmitted through digital input (S 0) from an external energy measuring module NZN...-XMC-SO. 2 digital inputs for the switch status. 2 transistor outputs for remote switching. Status data: NZM: ON/OFF/TRIPPED, load warnings, reason for last trip, actual current value, switch type actual settings of the rotary coding switches. A connection cable for the circuit-breaker and two NZM auxiliary contacts (1xNO, 1xNC) are included as standard.
