119861
NZM4-XKV95-2KB

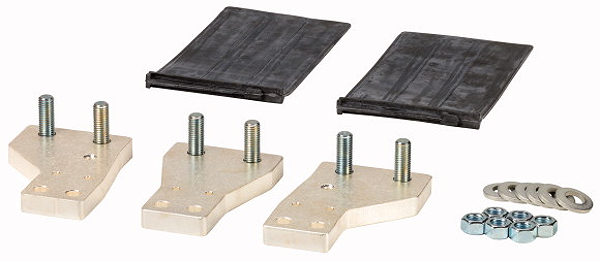

Connection width extension, 3p, 2 studs, size 3
Optional accessories for the circuit-breaker series NZM offers a comprehensive portfolio of application options for use world wide. The mounting is always flexible and easy thanks to the modular function groups. Notes: part no. contains parts for a terminal located at top or bottom for 3 pole circuit-breakers. Threaded studs for cable lugs up to 4 x 300 mm² can be fitted to circuit-breaker with screw connection. Phase isolator, insulation plate and 2 control circuit terminals included as standard. can be used for: NZM4, N(S)4
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 3.30 kg |
Length: | 0.00 m |
Width: | 0.00 m |
Height: | 0.00 m |
