Eaton 118803

CHSZ-12/04

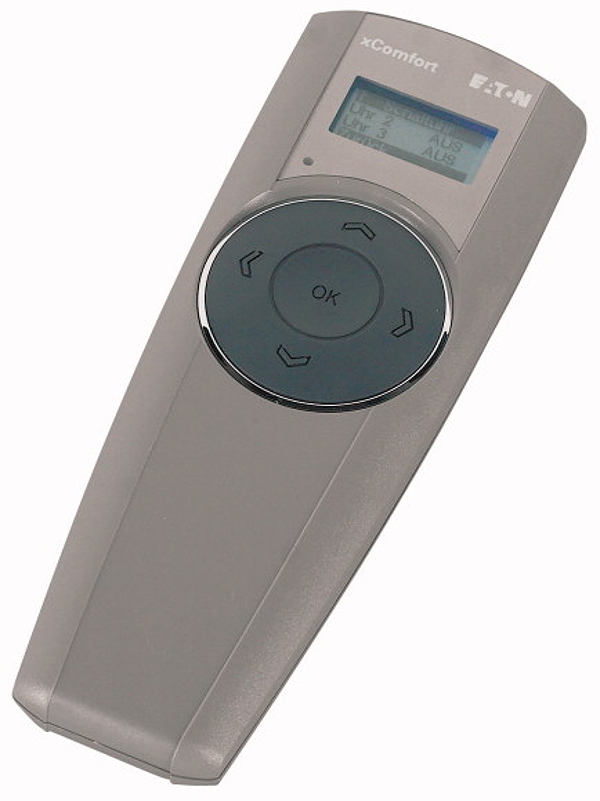

Remote control, display, 12-way

Description

EL-Nummer (Norway). 0004560645. The remote control 12-fold with display permits the comfortable and simple operation and controlling of the different functions such as, e.g.: lighting, shading, etc. A total of 12 functions can be selected and operated on the display with blue background lighting. The names of the functions are either freely adjustable or can be selected from approx. 20 names already pre-defined. An integrated clock indicates the date and time. 3 time switches can be set individually by the user and can each be assigned to one of the 12 functions. A password protection prevents unauthorized access to the setting options. The IR interface integrated in the battery compartment is used for system updates or for extending functions. The yellow LEDs indicate if the signal has been sent, understood correctly and also if a confirmation has been returned. The battery indicator informs of the necessity to change the batter in due time. the mobile device is powered by two AAA batteries. An optional wall bracket using a magnet is possible (110771 must be ordered separately). Batteries are included as standard.
