Eaton 110748

CSEZ-01/18

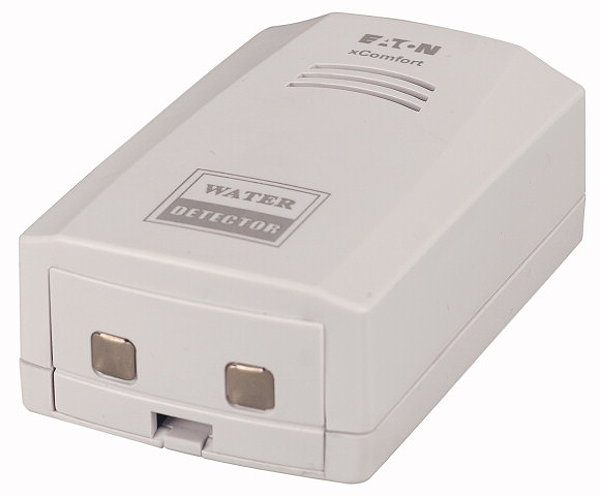

Leakage detector, water

Description

EL-Nummer (Norway). 0004560635. The water leakage sensor detects escaping fluids and, on the one hand outputs an acoustic alarm and on the other hand, a potential-free relay contact is switched. The alarm is output for the duration the fluid is detected. Notice: if an alarm is tripped, also by making contact with the sensor with your hand and if you are too close to the sensor, this can lead to damage to your hearing!!! the sensor element can also be removed and using a cable, can be mounted independent from the evaluation unit. The device is powered with a 9V battery (6LR61). In order to be able to integrate the sensor into the Eaton radio system, in mode 2 the relay contact must be connected with a binary input 265627x signal contact (2). The SPD insert with the binary input 2x230VAC (265626) is NOT permissible!!! (Notice: observe the correct wiring!) The fixing is carried out using screws or adhesive strips. screws and peg supplied as standard. Battery supplied as standard
