Eaton 109382

CSEZ-01/17

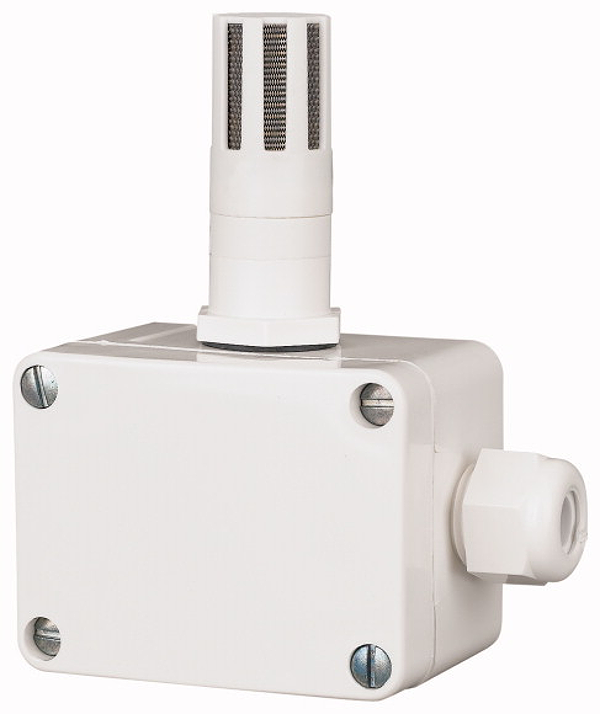

Humidity sensor, outside, 0-10VDC

Description

EL-Nummer (Norway). 0004560634. The humidity sensor with temperature sensor (PT1000) generall has 2 functions. The relative humidity is measured and output as analog variable or 0-10 VDC (the higher the value the higher the relative humidity). The temperature sensor (PT1000) measures the temperature where the resistance value is then evaluated directly. In order to be able to integrate both variables into the Eaton radio system, the sensors must be connected with the analog input 2-fold (109372). the 24VDC supply of the sensors is also carried out via the analog input (Notice: note the correct wiring and setting at the analog input!)
