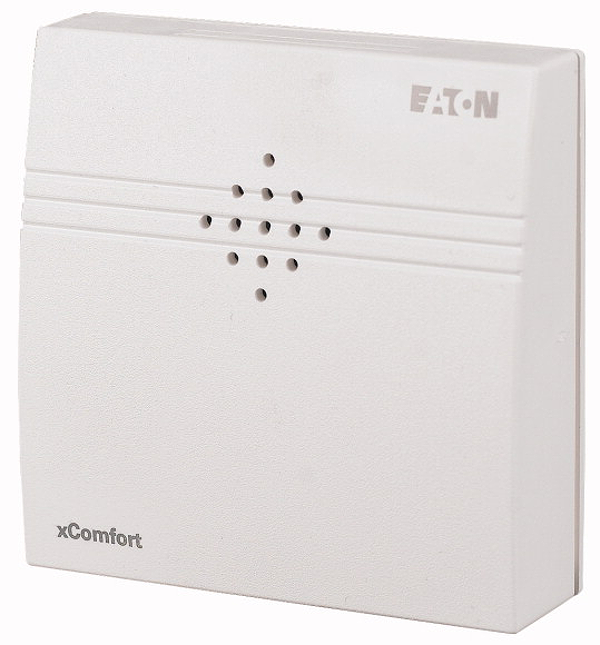

Eaton 109381

CSEZ-01/16

Air quality sensor, VOC, 0-10VDC

Description

EL-Nummer (Norway). 4560633. The air quality sensor measures the current air quality and outputs this as analog variables 0-10 VDC (the smaller the value, the better the air quality). In contrast to other sensors (e.g.: CO2-sensor, this only measures CO2 and nothing else), the mixed gas sensor can detect a very wide spectrum of gases and vapors. In this way, it can, e.g.: detect body odor, tobacco smoke, evaporation from the ground or furniture, cleaning agents, etc. and, for example, switch in the ventilation. in order to be able to integrate the air quality sensor into the Eaton radio system, the sensors must be connected with the analog input 2-fold (109372). The 24VDC supply of the sensors is also carried out via the analog input 2-fold (Notice: note the correct wiring and setting at the analog input!)
