Eaton
107207
BBA-TP3/1000
Request a Quote
Image copyright: Eaton

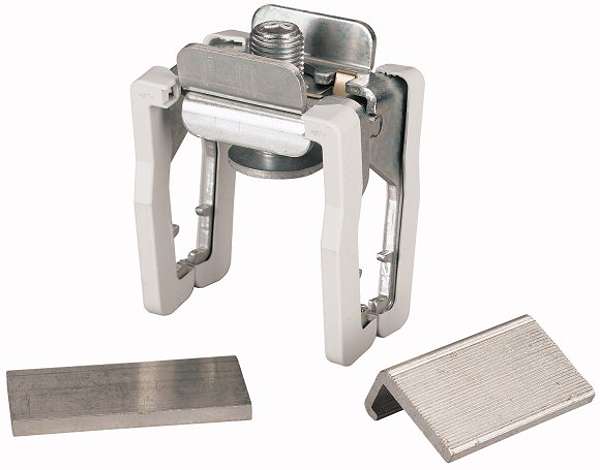

Eaton 107207
BBA-TP3/1000
Terminal plate, 3p, 1000mm², 1600A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Connection kit, 60 mm system, poles=3, terminal capacity=Up to (2 x) 10x50x1 and (2 x) 50x10, Ie=1600A, width=228mm, can be used for rail 30x10 and double T profile, termination space WxH=5x28, silicon free, chlorine free, self-extinguishing to UL 94, track resistance CTI 200, temperature resistant to 120 °C, adapted to Eaton NZM4, fixing direct over busbar terminals, passing through is not possible
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 1.87 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
