Product
Eaton
107205
BBA-TP3/16
Request a Quote
Image copyright: Eaton

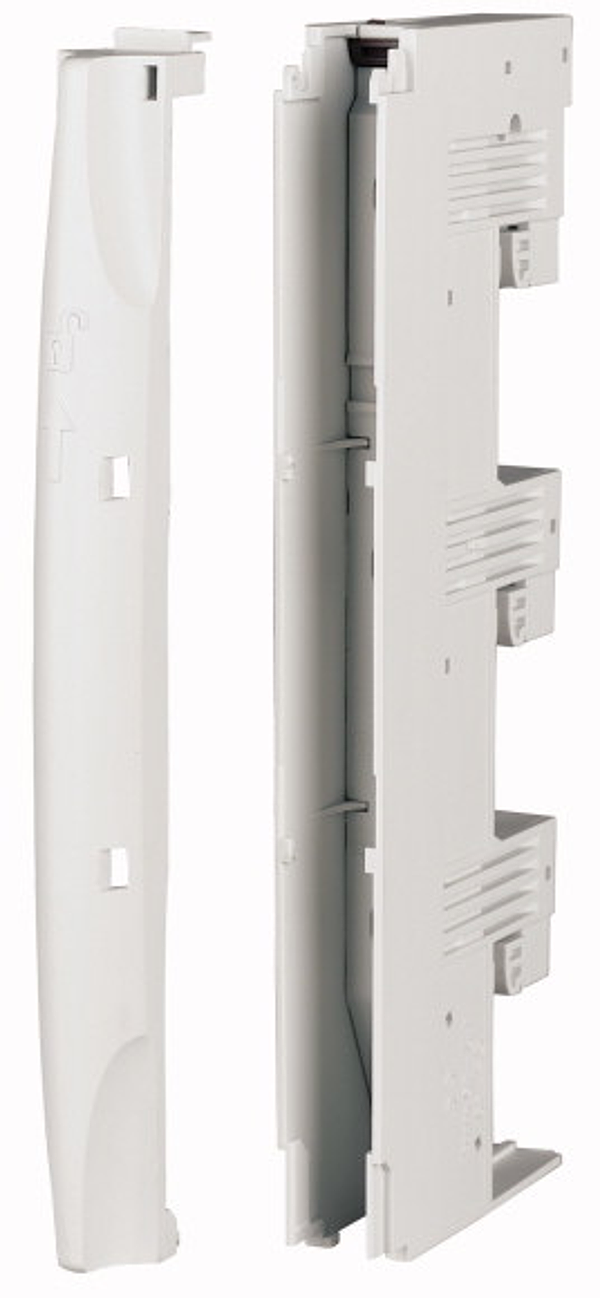

Eaton 107205
BBA-TP3/16
Terminal module, 1.5-16mm², 3p, 20mm
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Connection terminal board, 60 mm system, poles=3, spring-loaded terminal, terminal capacity=1.5 up to 16mm² or AWG16-AWG6, Ie=80A, width=20mm, can be used for rail 12x5/10 to 30x5/10 and double T profile, silicon free, chlorine free, self-extinguishing to UL 94, track resistance CTI 200, temperature resistant to 120 °C, fixing directly on busbars
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.18 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
