Product
Eaton
107185
BBA-TP3/300
Request a Quote
Image copyright: Eaton

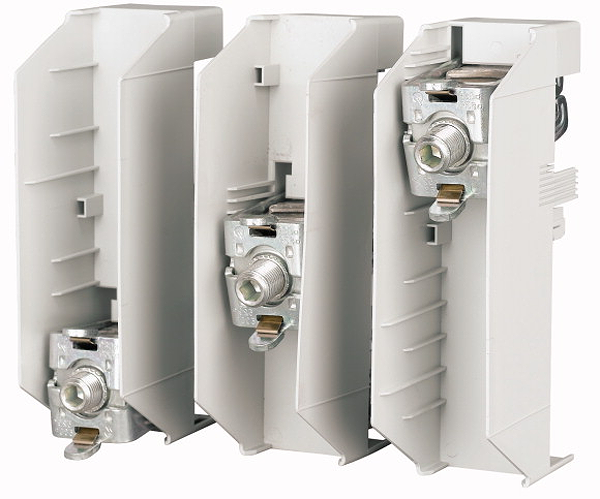

Eaton 107185
BBA-TP3/300
Terminal plate, 3p, 95-300mm², 560A
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EL-Nummer (Norway). 2465023. Connection kit, 60 mm system, poles=3, terminal capacity=95-300mm² MCM 300-MCM 600., Ie=560A, width=180-240mm, can be used for rail 20x5/10, 25x5/10, 30x5/10, double T profile, silicon free, chlorine free, self-extinguishing to UL 94, track resistance CTI 200, temperature resistant to 120 °C, pole pitch adjustable, fixing direct over busbar terminals, including shroud with adjustable width, passing through is not possible
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 1.99 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
