Product
Eaton
107184
BBA-TP3/120
Request a Quote
Image copyright: Eaton

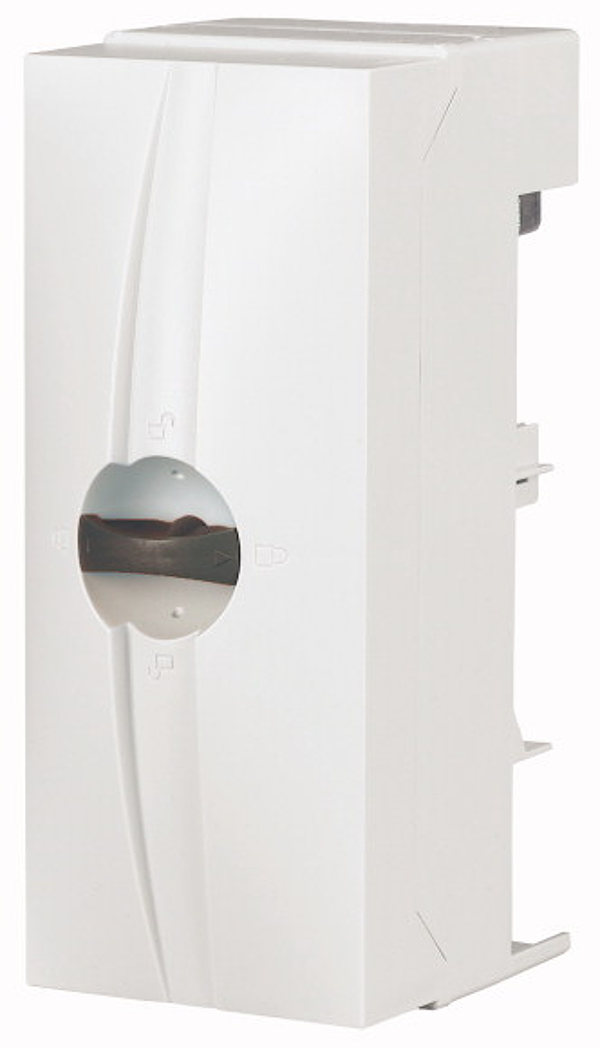

Eaton 107184
BBA-TP3/120
Terminal plate, 35-120mm², 81mm
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EL-Nummer (Norway). 2465022. Connection terminal board, 60 mm system, poles=3, screw terminals, terminal capacity=35 up to 120mm² or AWG2-MCM250 or 10x16x0.8, Ie=440A, width=81mm, can be used for rail 12x5/10 to 30x5/10 and double T profile, silicon free, chlorine free, self-extinguishing to UL 94, track resistance CTI 200, temperature resistant to 120 °C, the terminal can be removed for the connection of uncut conductors, termination space WxH = 15x10 mm, passing through is not possible
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.52 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
