Product
Eaton
107162
BBS-3/PR
Request a Quote
Image copyright: Eaton

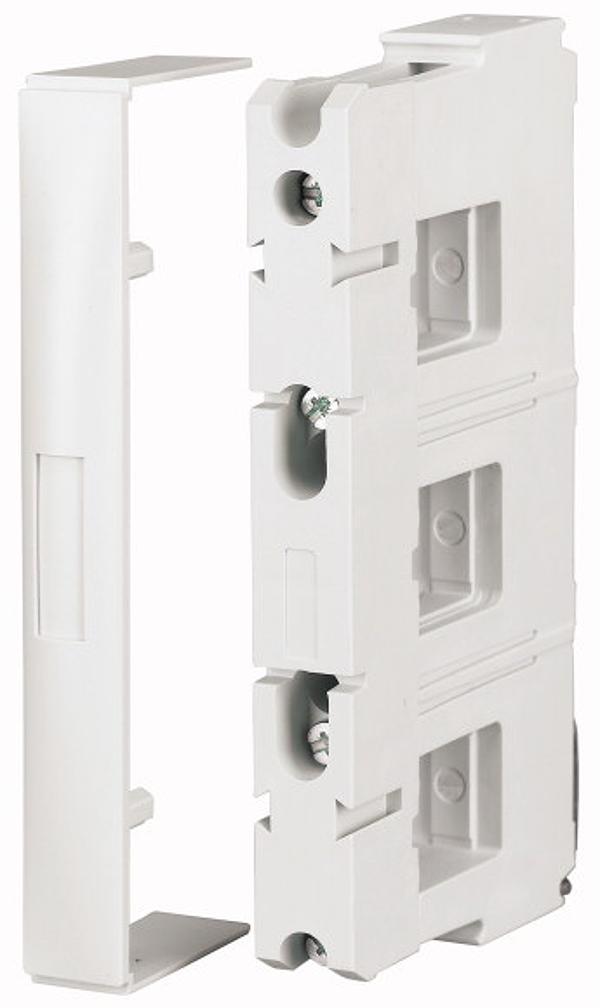

Eaton 107162
BBS-3/PR
Busbar support, 3p, profile up to 720mm²
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EL-Nummer (Norway). 0002465005. IEC/UL busbar support, 60 mm system, rated operational current Ie=1600A, poles=3, can be used for double T profile, suitable for outside and middle carrier, with screw block inside, temperature resistant to 120 °C, track resistance CTI 200, self-extinguishing to UL 94, RAL 7035, thermoplastic, silicon free, chlorine free, halogen free, distance between busbar supports corresponding to short-circuit strength diagram, UL approved
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.48 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
