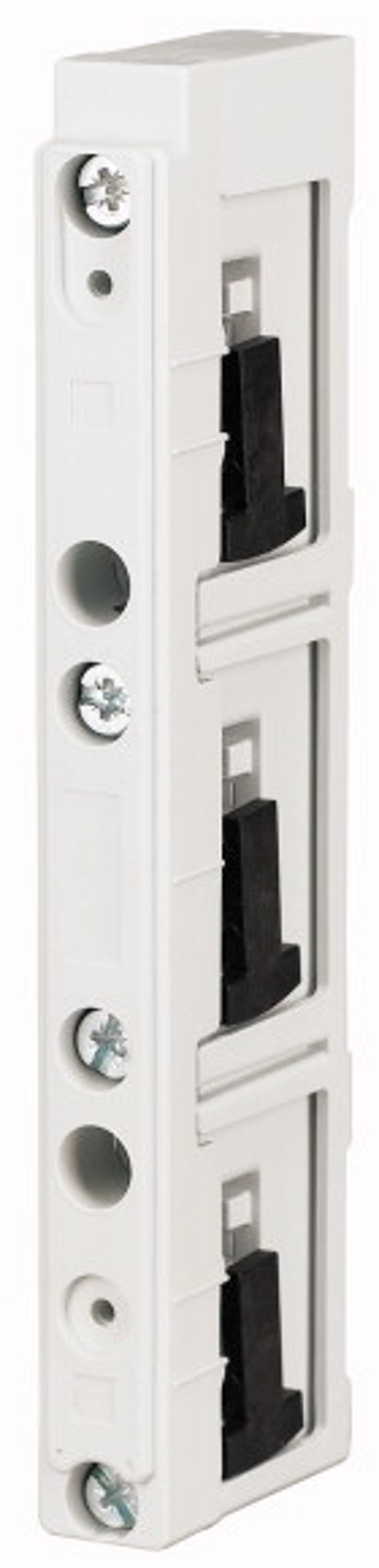

Eaton 107067
BBS-3/FL-NA
Busbar support, 3p, for flat busbars
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
EL-Nummer (Norway). 2465001. IEC busbar support, 60 mm system, rated operational current Ie=630A, poles=3, can be used for 12x5/10, 20x5/10 and 30x5/10, with slider to adapt to the respective busbar size, with screw block inside, temperature resistant to 120 °C, track resistance CTI 200, self-extinguishing to UL 94, RAL 7035, thermoplastic, silicon free, chlorine free, halogen free, distance between busbar supports corresponding to short-circuit strength diagram, UL approved
Logistic parameters
| ECCN: | |
| Country of Origin: | US |
| EAN: | |
| Weight: | 0.15 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
