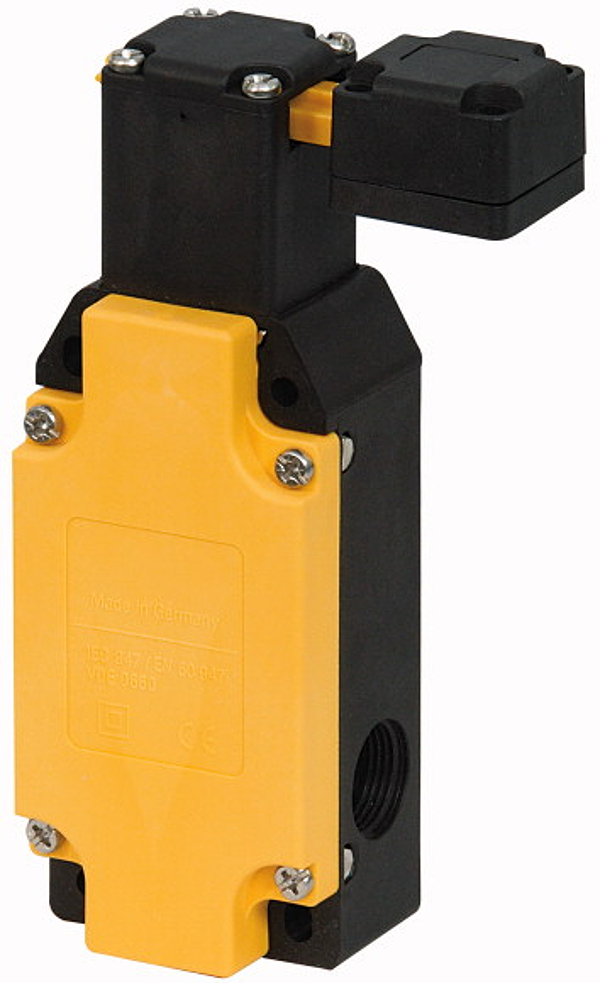

Eaton 106859

LS4/S12-7/IB/ZB

Safety position switch, LS(4)…ZB, Safety position switches, Complete unit, 1 N/O, 2 NC, Insulated material, Screw terminal, -25 - +70 °C

Description

Alternate Catalog No. LS4/S12-7/IB/ZB. EL-Nummer (Norway). 4315222. Safety position switch, Basic function: Position switches, Safety position switches, Part group reference: LS(4)…ZB, Product range: Safety position switches, Degree of Protection: IP65, Features: Complete unit, Ambient temperature: -25 - +70 °C, Description: With the actuator inserted, the N/O contact is open and the NC contact is closed., Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 2 NC, Notes: = safety function, by positive opening to IEC/EN 60947-5-1, Housing: Insulated material, Connection type: Screw terminal, Standards: IEC/EN 60947
