Eaton 104921

CBMA-02/01

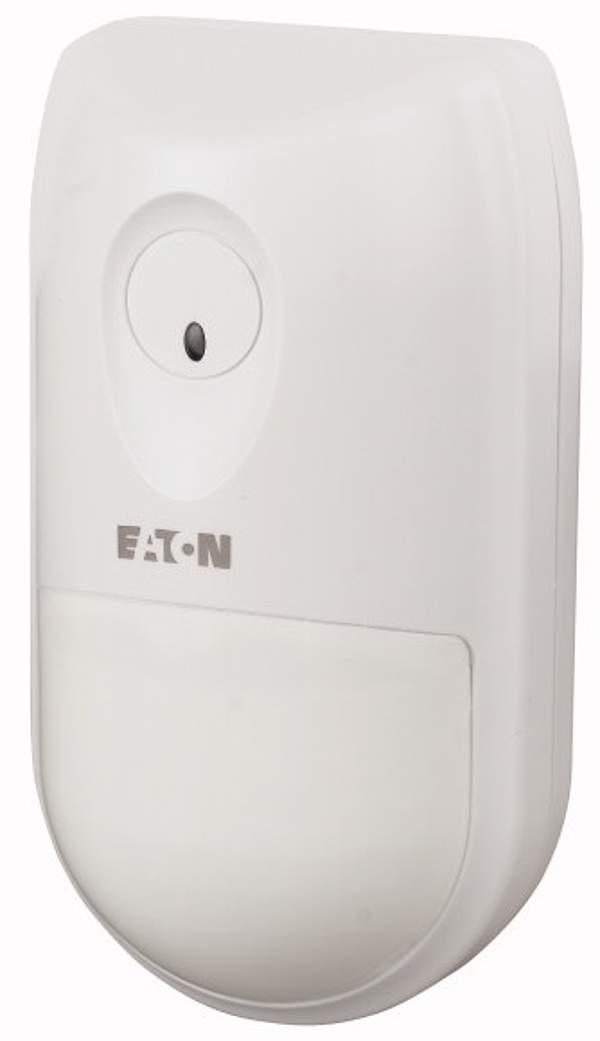

Movement sensor, PIR

Description

EL-Nummer (Norway). 0004560611. The PIR Motion sensor records movements in the interior of the buildings. The device is powered with two AAA batteries (equipment supplied) or using a power supply unit (106291 equipment not supplied) and can therefore easily be mounted anywhere (screwed and glued). For the easier adjustment of the Motion sensor, a separate pivoting "mounting bracket" (106292) can be ordered. Channel A (for illumination) sends a switching command depending on the movement, brightness and off-delay. channel B (for alarm functions) sends a switching command when detecting the movements independent of the brightness and time delay (channel B activated for approx. 145 s). The number of detection pulses to be evaluated can be set together for both channels. All settings are carried out directly on the device with the front cover removed. An LED makes the setting task of the sensors easier.
