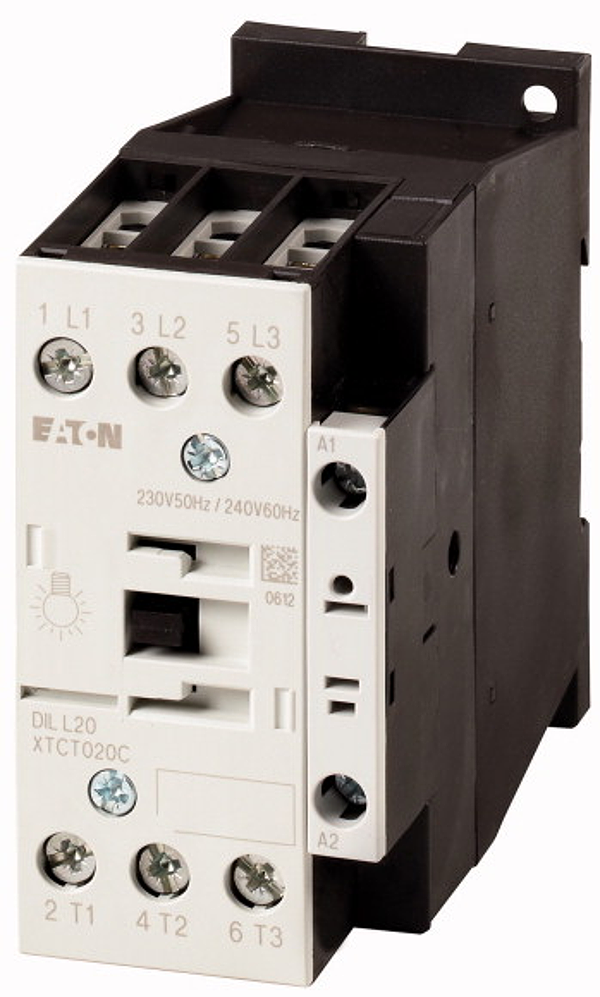

Article image 104408

Eaton 104408

DILL20(230V50HZ,240V60HZ)

Lamp load contactor, 230 V 50 Hz, 240 V 60 Hz, 220 V 230 V: 20 A, Contactors for lighting systems

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Alternate Catalog No. XTCT020C00F. EL-Nummer (Norway). 4134241. Lamp load contactors, Application: Contactors for lighting systems, Utilization category: AC-1: Non-inductive or slightly inductive loads, resistance furnaces, Rated operational current 380 V 400 V: Ie = 27 A, Rated operational current AC-1 Conventional free air thermal current, 3 pole, 50 - 60 Hz Open at 40 °C: Ith =Ie = 45 A, Actuating voltage: 230 V 50 Hz, 240 V 60 Hz, Standards: IEC/EN 60947, VDE 0660, UL, CSA, Degree of Protection: IP00

Logistic parameters

ECCN:
Country of Origin: RO
EAN:
Weight: 0.43 kg
Length: 0.00 m
Width: 0.00 m
Height: 0.00 m
