Product
Eaton
101455
BBA0C-16
Request a Quote
Image copyright: Eaton
Eaton 101455
BBA0C-16

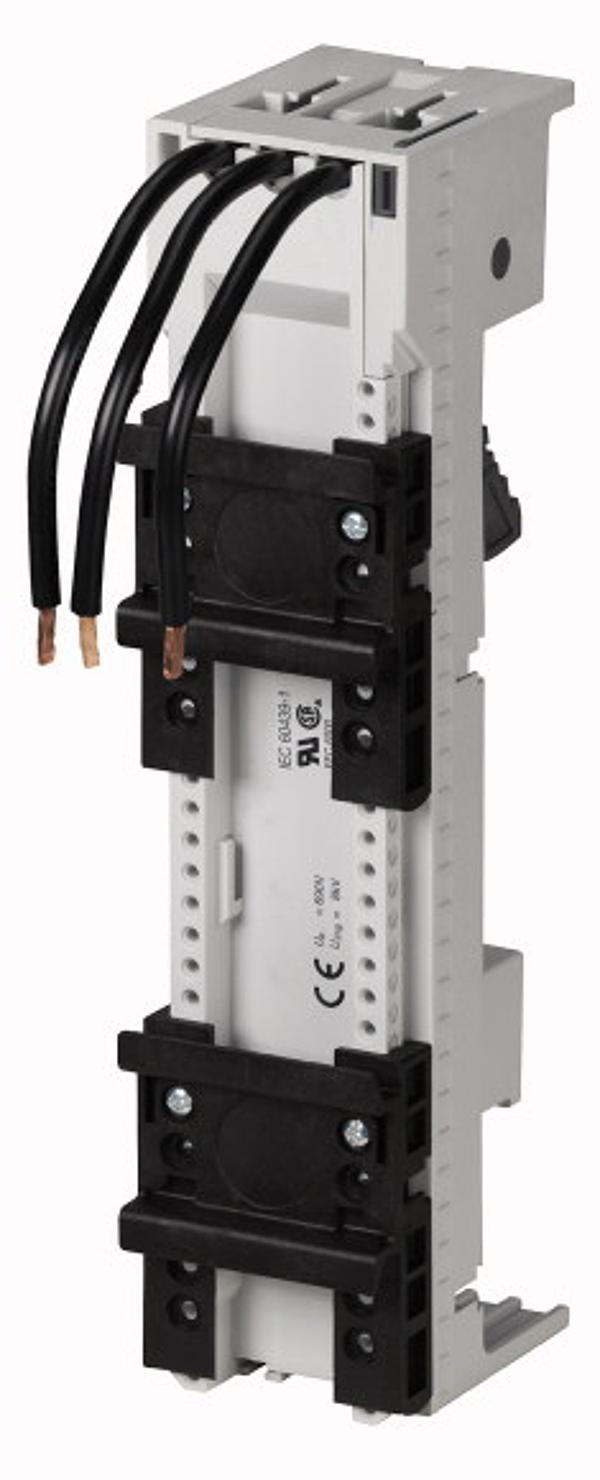

Busbar adapter, 45 mm, 16 A, DIN rail: 2
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Alternate Catalog No. BBA0C-16. EL-Nummer (Norway). 2465050. 45mm busbar adapter for 60mm busbar system, two mounting rails, three prefabricated cables (AWG14/2.5 square millimeter) for connection of switching device with spring-loaded terminals in the feeder circuit, can be used for motor-protective circuit-breaker PKZM0-…-C or motor-starter combination with PKZM0-…-C and contactor DILM(C)7 to DILM(C)15, rated operational current: 16A, rated operational current according to UL508: 12A
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | |
| Weight: | 0.28 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
