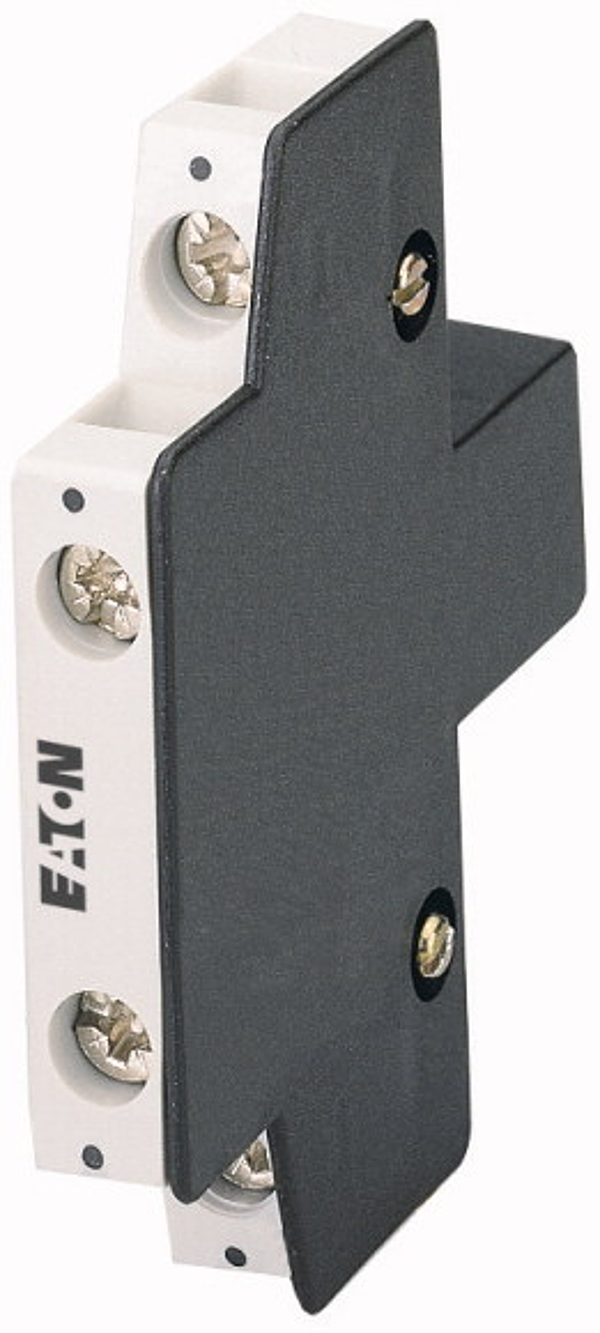

Eaton 101371

DILM32-XHI11-S

Auxiliary contact module, Type: Side-mounting auxiliary contacts, 2 pole, Ith= 16 A, 1 N/O, 1 NC, Side mounted, Screw terminals

Description

Alternate Catalog No. XTCEXSCC11. EL-Nummer (Norway). 4130224. Auxiliary contact module, with interlocked opposing contacts, Function: for standard applications, 2 pole, Connection technique: Screw terminals, Rated operational current AC-15 220 V 230 V 240 V: Ie= 4 A, Rated operational current AC-15 380 V 400 V 415 V: Ie= 4 A, Contacts N/O = Normally open: 1 N/O, Contacts N/C = Normally closed: 1 NC, Mounting type: Side mounted, For use with: DILM17…, DILM25…, DILM32…, DILM38…, DILMF8…, DILMF11…, DILMF14…, DILMF17…, DILMF25…, DILMF32…, Type: Side-mounting auxiliary contacts
