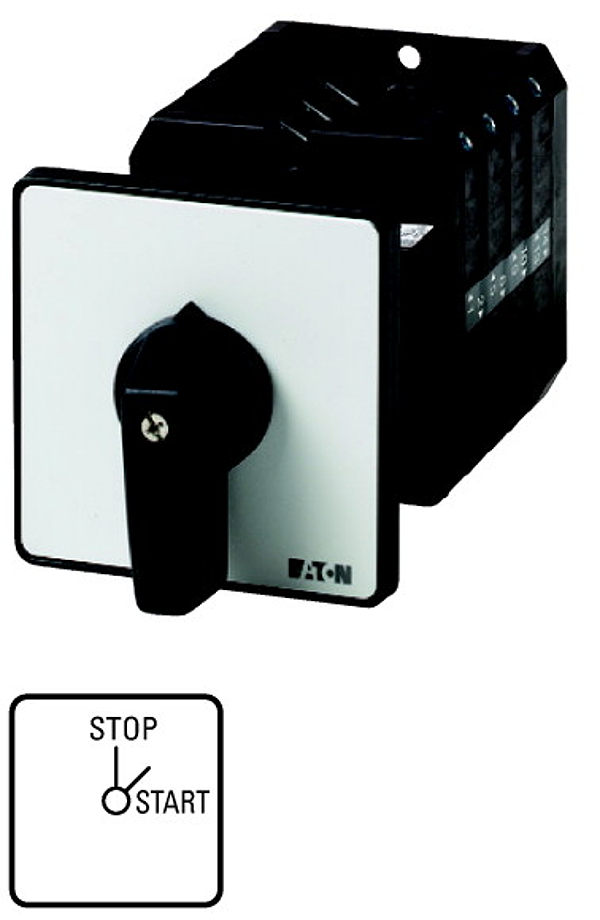

Eaton 096942
T5-2-15414/Z
ON-OFF switches, T5, 100 A, rear mounting, 2 contact unit(s), Contacts: 4, 45 °, maintained, Without 0 (Off) position, STOP-START, Design number 15414
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
On-Off switch, Product range: Control switches, Standards: IEC/EN 60947, VDE 0660, IEC/EN 60204, Switch-disconnector according to IEC/EN 60947-3, Part group reference: T5, with black thumb grip and front plate, Contacts: 4, Degree of Protection: Front IP65, Design: rear mounting, Switching angle: 45 °, Switching performance: maintained, Without 0 (Off) position, 2 contact unit(s), Rated uninterrupted current: Iu= 100 A, front plate: STOP-START
Logistic parameters
| ECCN: | |
| Country of Origin: | GB |
| EAN: | |
| Weight: | 0.49 kg |
| Length: | 0.00 m |
| Width: | 0.00 m |
| Height: | 0.00 m |
